Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver side door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Remove the memory power seat switch connector (A).
    Fig 1: Locating Memory Power Seat Switch Connector
    G12298534Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the memory power seat switch (A) after loosening the mounting screws.

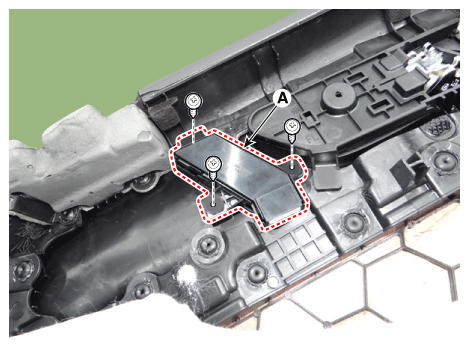

    Fig 2: Locating Memory Power Seat Switch With Mounting Screws
    G12298535Courtesy of KIA MOTORS AMERICA, INC.
