Repair Procedures: Inspection

  1. Remove the memory power seat connector.

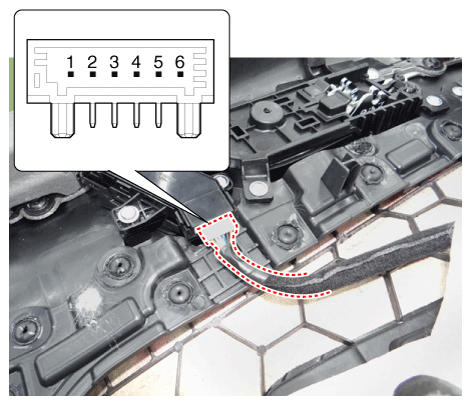

    Fig 1: Locating Memory Power Seat Connector
    G12298536Courtesy of KIA MOTORS AMERICA, INC.
  2. Check continuity between memory power seat switch connector and grounding by pressing each switch. If continuity is not as specified, replace the switch.

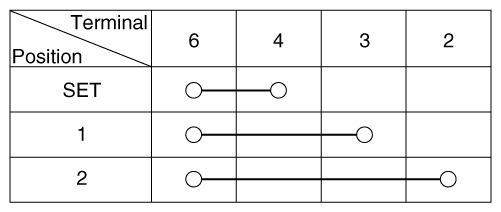

    Fig 2: Memory Power Seat Switch Terminal Continuity Chart
    G12298537Courtesy of KIA MOTORS AMERICA, INC.
