Repair Procedures: Removal

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool to prevent damaging the surface.

Disconnect the negative (-) battery terminal.
Remove the center fascia upper panel.
(Refer to Body - "CENTER FASCIA PANEL ")
Remove the audio monitor (A) after loosening the screws.

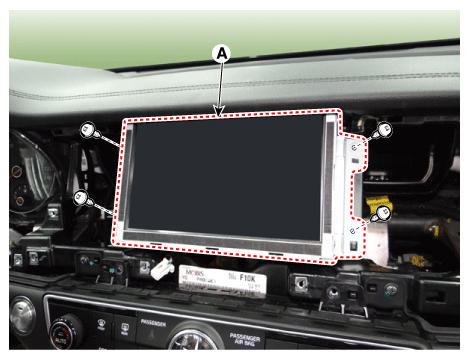

Fig 1: Locating Audio Monitor With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the audio monitor connectors (A).

Fig 2: Locating Audio Monitor Connectors
Courtesy of KIA MOTORS AMERICA, INC.
