Right/Left Pantoscopic Camera

Remove the scalp.
(Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

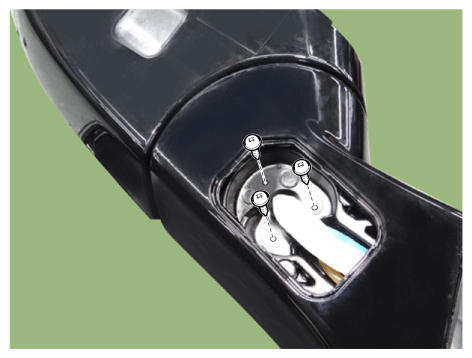

Loosen the screw (A).

Fig 1: Loosening Right/Left Pantoscopic Camera Screw
Courtesy of KIA MOTORS AMERICA, INC.

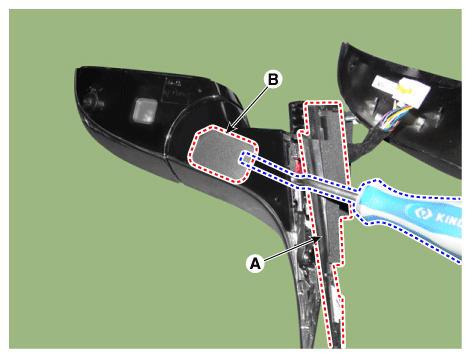

Separate the pad (A) and then remove the cover (B) by using the flat-bladed screwdriver or remover.

Fig 2: Removing Cover By Using Flat-Bladed Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.

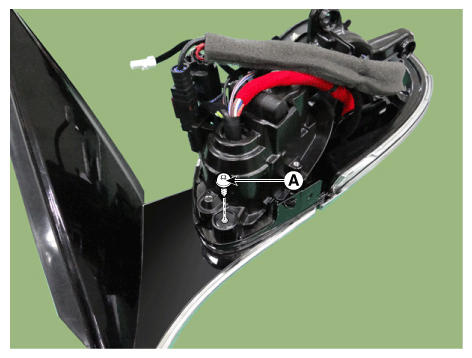

Loosen the screw (A).

Fig 3: Loosening Screw
Courtesy of KIA MOTORS AMERICA, INC.

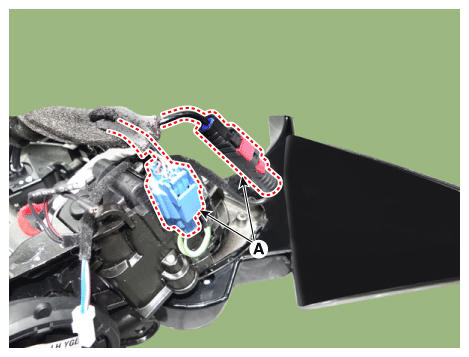

Disconnect the camera connectors (A).

Fig 4: Locating Camera Connectors
Courtesy of KIA MOTORS AMERICA, INC.

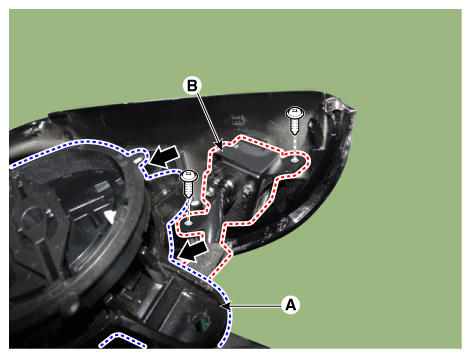

After pushing the mirror actuator body (A) in the direction of arrow, remove the camera (B) by loosening the screws.

Fig 5: Pushing Mirror Actuator Body
Courtesy of KIA MOTORS AMERICA, INC.
