Front Pantoscopic Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Disconnect the front pantoscopic camera connector (A).

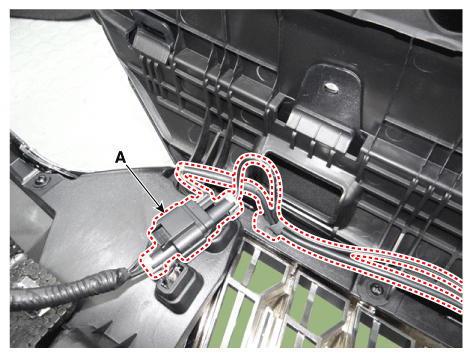

    Fig 1: Locating Front Pantoscopic Camera Connector
    G12298990Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front pantoscopic camera (A) after loosening the mounting screws.

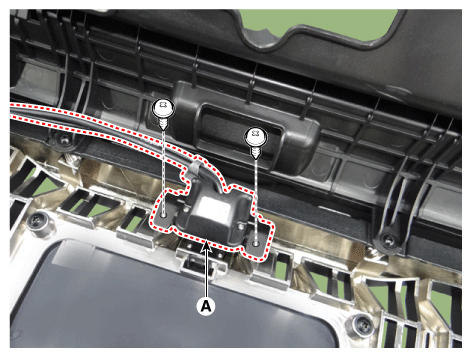

    Fig 2: Removing Front Pantoscopic Camera Mounting Screws
    G12298991Courtesy of KIA MOTORS AMERICA, INC.
