Repair Procedures: Inspection

  1. Disconnect the BSD switch connector from the crash pad side switch.

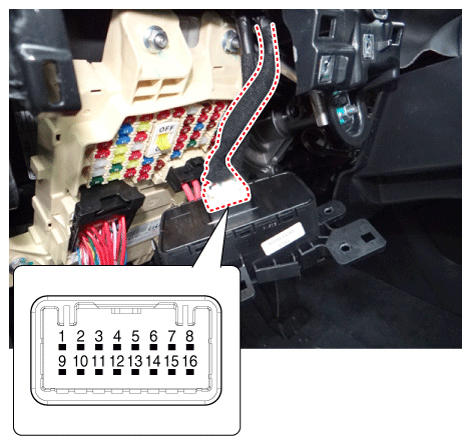

    Fig 1: Locating BSD Switch Connector
    G12298339Courtesy of KIA MOTORS AMERICA, INC.
  2. Operate the BSD switch, then check for continuity between terminals and BSD switch connector.
    Fig 2: BSD Switch Terminal Continuity Chart
    G12298340Courtesy of KIA MOTORS AMERICA, INC.
