Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering back cover (A) after loosening the mounting screws.

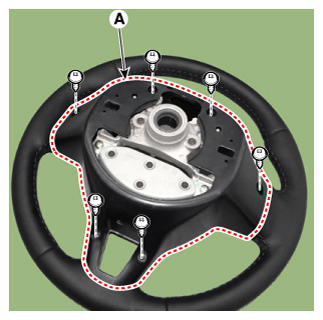

    Fig 1: Locating Steering Back Cover With Screws
    G12290479Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the steering wheel remote control connector (A).

    [LH]

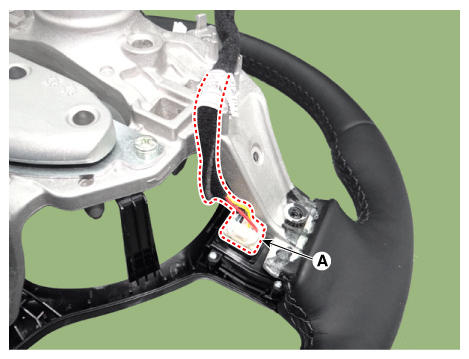

    Fig 2: Locating Steering Wheel Remote Control Connector (LH)
    G12290480Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

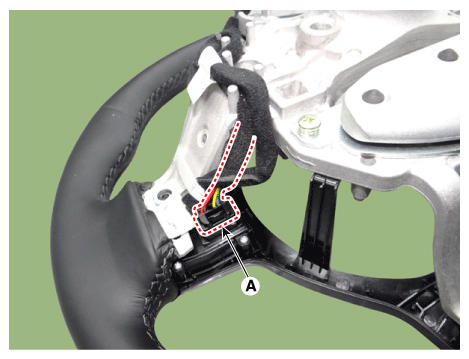

    Fig 3: Locating Steering Wheel Remote Control Connector (RH)
    G12290481Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

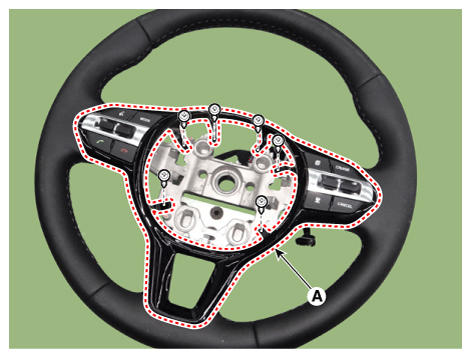

    Fig 4: Locating Steering Wheel Remote Control Assembly With Screws
    G12290482Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the steering wheel remote control (A) after loosening the mounting screws.

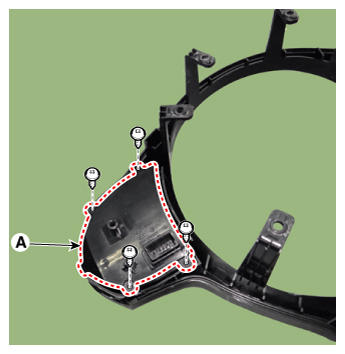

    Fig 5: Locating Steering Wheel Remote Control With Mounting Screws
    G12290483Courtesy of KIA MOTORS AMERICA, INC.
