Vehicle S/W Management

CAUTION: In case of replacing TCM or Transmission perform following procedures;
  1. Ignition switch "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF".
  4. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.

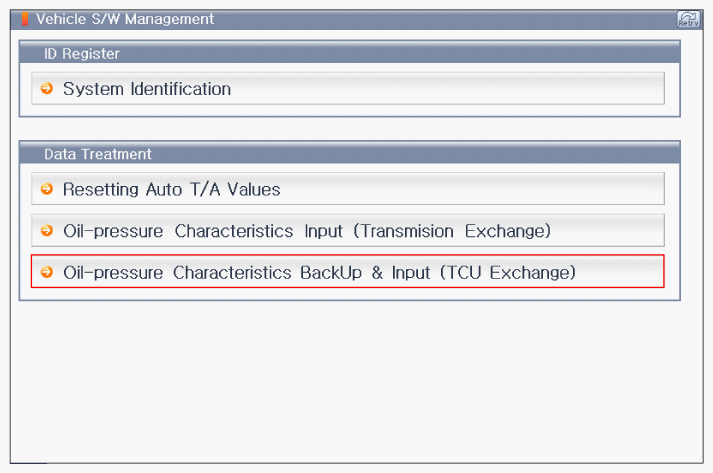

Fig 1: Screen Display - Vehicle S/W Management
G12286705Courtesy of KIA MOTORS AMERICA, INC.

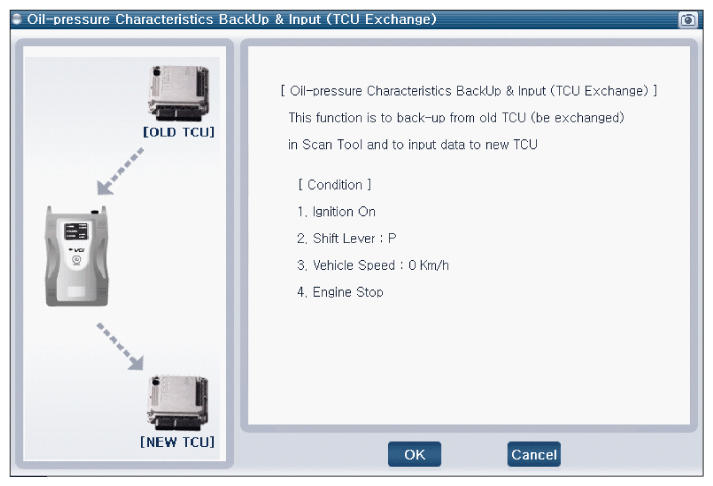

Fig 2: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 1 Of 8)
G12286706Courtesy of KIA MOTORS AMERICA, INC.

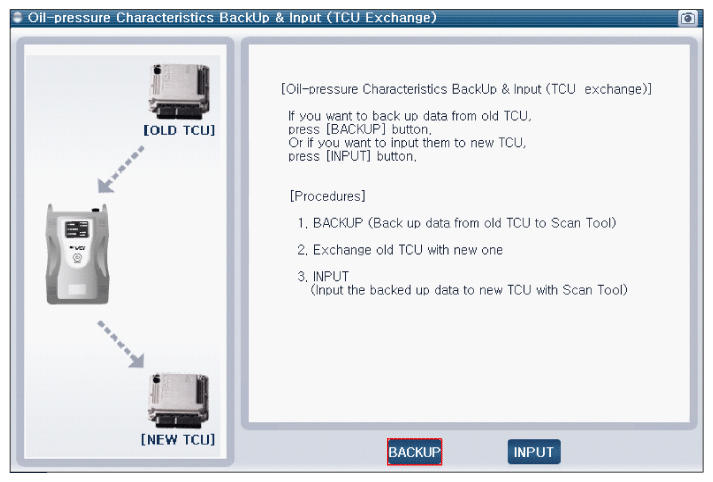

Fig 3: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 2 Of 8)
G12286707Courtesy of KIA MOTORS AMERICA, INC.

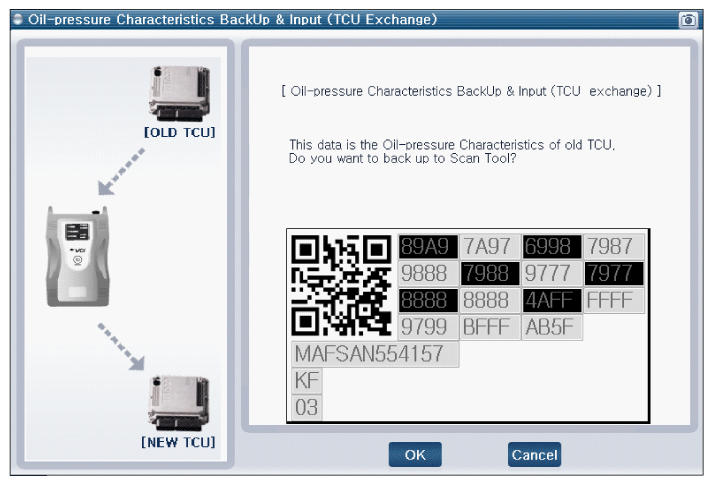

Fig 4: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 3 Of 8)
G12286708Courtesy of KIA MOTORS AMERICA, INC.

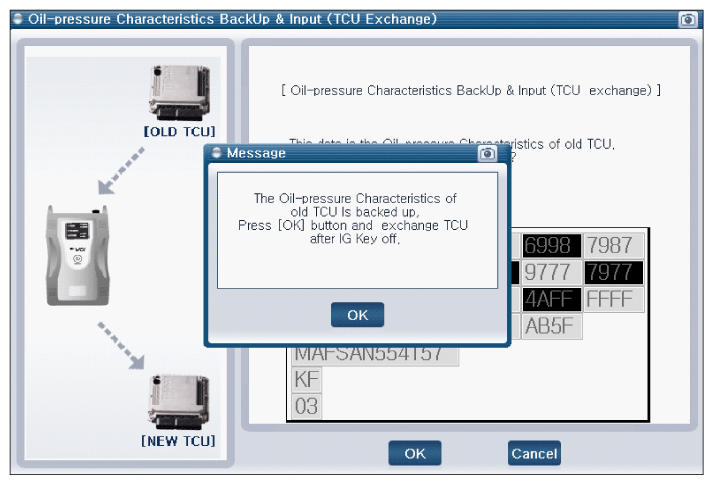

Fig 5: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 4 Of 8)
G12286709Courtesy of KIA MOTORS AMERICA, INC.

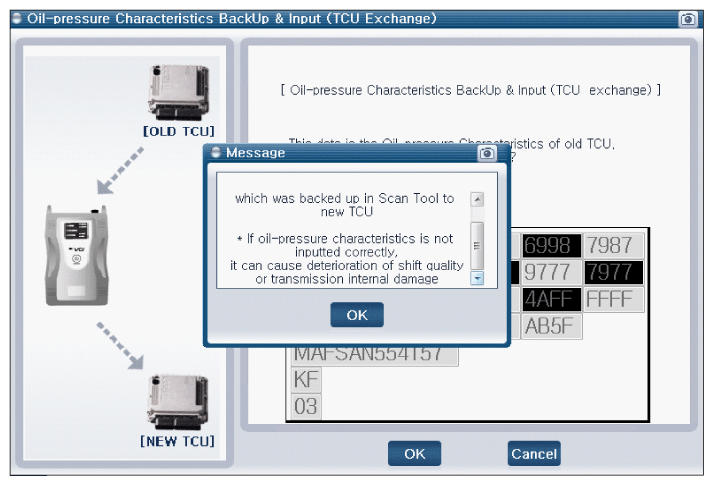

Fig 6: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 5 Of 8)
G12286710Courtesy of KIA MOTORS AMERICA, INC.

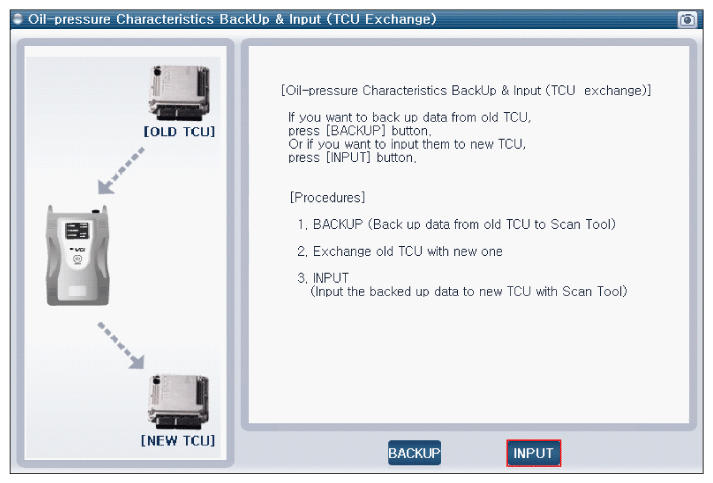

Fig 7: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 6 Of 8)
G12286711Courtesy of KIA MOTORS AMERICA, INC.

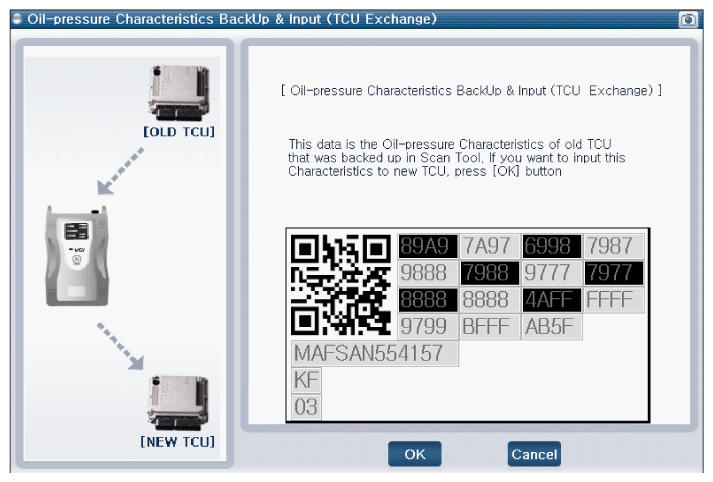

Fig 8: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 7 Of 8)
G12286712Courtesy of KIA MOTORS AMERICA, INC.

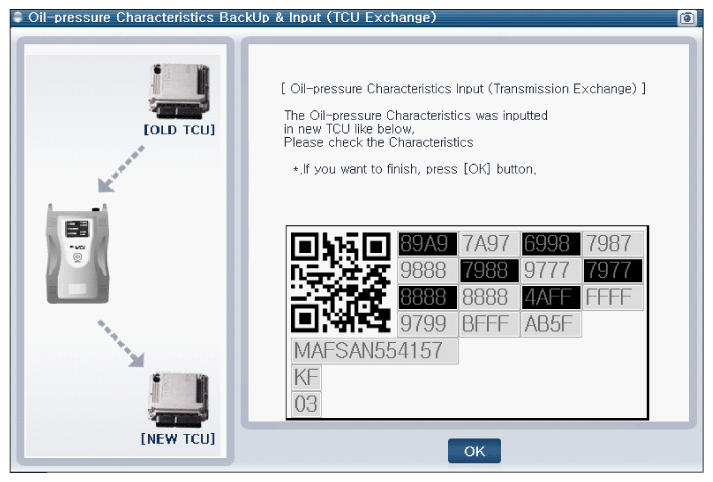

Fig 9: Screen Display - Oil-Pressure Characteristics Backup & Input (TCU Exchange; 8 Of 8)
G12286713Courtesy of KIA MOTORS AMERICA, INC.
