Component Inspection: Notes

  1. Ignition "OFF", connect KDS/GDS.
  2. Ignition "ON", select "Current Data" with KDS/GDS.
  3. Monitor the "Read Class Status" parameter on the KDS/GDS.

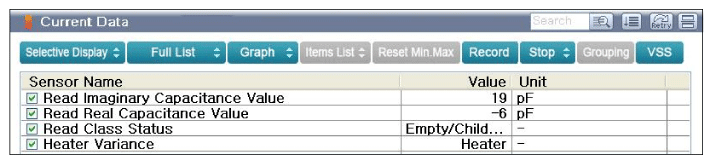

    Fig 1: Scantool Display - Current Data (Passenger Unoccupied)
    G12280699Courtesy of KIA MOTORS AMERICA, INC.

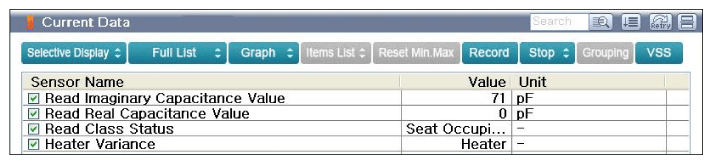

    Fig 2: Scantool Display - Current Data (Passenger Occupied)
    G12280700Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • Problem still occurs, replace, Passenger side Body Sensor ECU and then go to, "Body Sensor Reset" procedure.
    • Go to "VERIFICATION OF REPAIR " procedure.
