Component Inspection: Notes

Ignition "OFF", connect KDS/GDS.
Ignition "ON", select "Current Data" with KDS/GDS.
Monitor the "Read Class Status" parameter on the KDS/GDS.

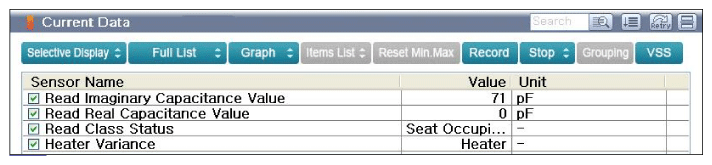

Fig 1: Scantool Display - Current Data (Passenger Unoccupied)
Courtesy of KIA MOTORS AMERICA, INC.

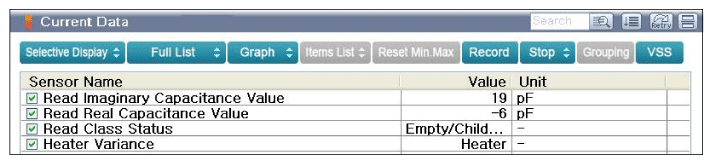

Fig 2: Scantool Display - Current Data (Passenger Occupied)
Courtesy of KIA MOTORS AMERICA, INC.
Has a problem been found?
YES
- Go to "VERIFICATION OF REPAIR " procedure.
- Carefully re-do this troubleshooting guide steps.
NO
- Problem still occurs, replace, Passenger side Body Sensor ECU and then go to, "Body Sensor Reset" procedure.
- Go to "VERIFICATION OF REPAIR " procedure.
