Check Catalyst Converter Performance

  1. Connect GDS to Data Link Cable (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with KDS/GDS.

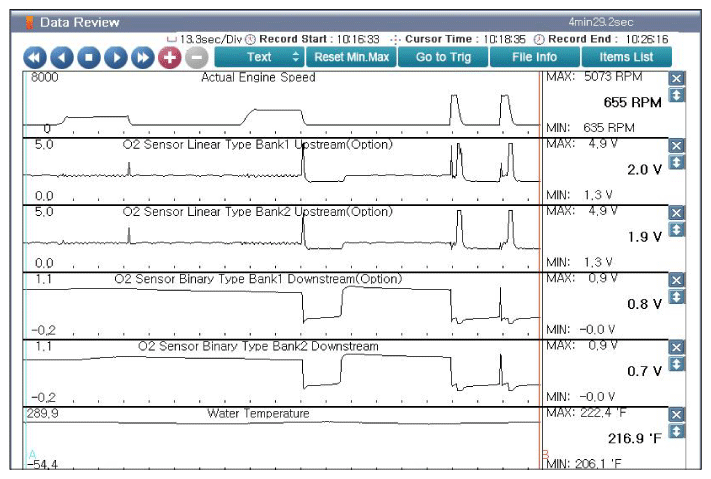

    Fig 1: Scantool Display - Engine Idle After Warm Up (Approx 2000RPM, 3000RPM & 5000RPM)
    G12285122Courtesy of KIA MOTORS AMERICA, INC.
    1. Can be determined by comparing the Performance of the catalyst oxygen sensor 1 and 2.
