Signal Waveform & Data

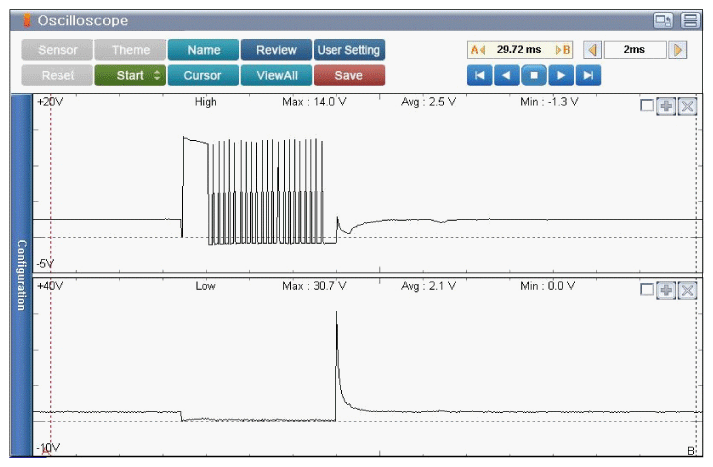

Fig 1: Screen Display - Normal Waveforms Of FPCV At Engine Idle
G12284467Courtesy of KIA MOTORS AMERICA, INC.

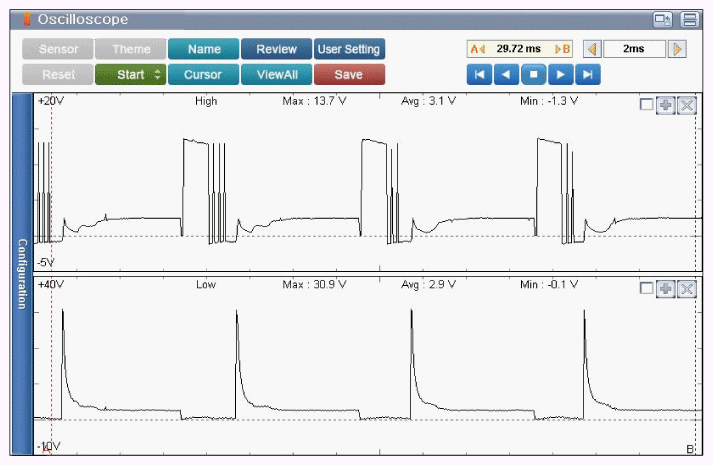

Fig 2: Screen Display - Normal Waveforms Of FPCV At Approx. 2000RPM
G12284468Courtesy of KIA MOTORS AMERICA, INC.
