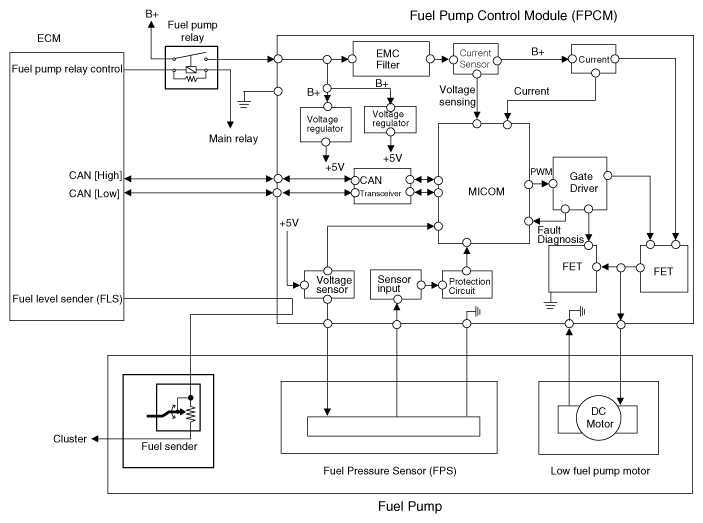

Home >> Kia >> 2017 >> Cadenza Technology >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Fuel System >> Fuel Delivery System >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
