[CVVT System Mode]

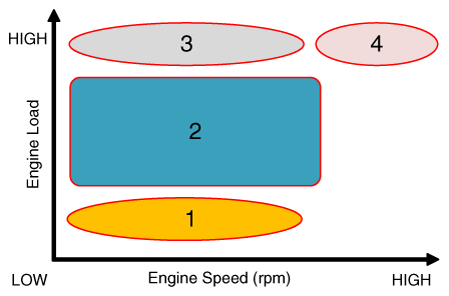

Fig 1: CVVT System Mode Chart (1 Of 2)
G12290625Courtesy of KIA MOTORS AMERICA, INC.

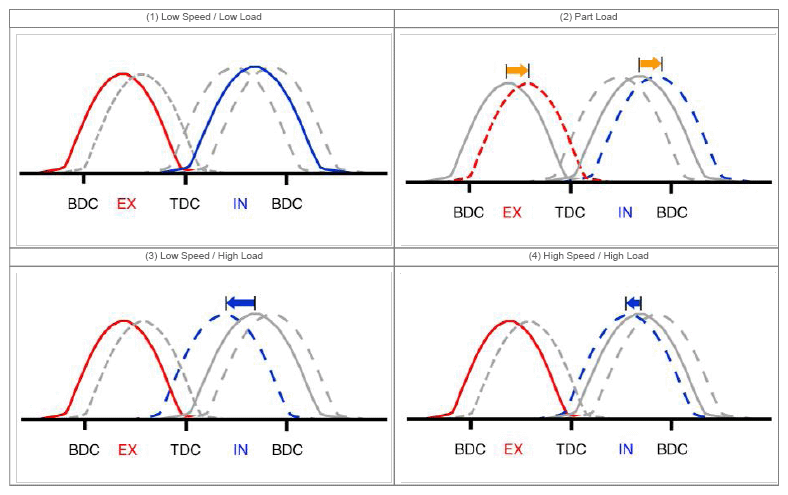

Fig 2: CVVT System Mode Chart (2 Of 2)
G12290626Courtesy of KIA MOTORS AMERICA, INC.
Driving Condition Exhaust Valve Intake Valve
Valve Timing Effect Valve Timing Effect
(1) Low Speed/Low Load Completely Advance * Valve Under-lap
* Improvement of combustion stability		 Completely Retard * Valve Under-lap
* Improvement of combustion stability
(2) Part Load Retard * Increase of expansion work
* Reduction of pumping loss
* Reduction of HC		 Retard * Reduction of pumping loss
(3) Low Speed/High Load Retard * Increase of expansion work Advance * Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed/High Load Advance * Reduction of pumping loss Retard * Improvement of volumetric efficiency
