DDM Outside Mirror Operation
Courtesy of KIA MOTORS AMERICA, INC.

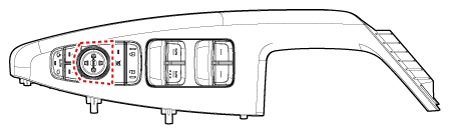

- Manual Operation of Driver Seat Outside Mirror
- With ACC ON or IGN ON and the mirror selection switch on the driver seat DDM switch set to the driver seat, operating the mirror direction switch (up/down and right/left) will activate the mirror actuator in the selected direction.
- Manual Operation of Passenger Seat Outside Mirror
- With ACC ON or IGN ON and the mirror selection switch on the DDM switch set to the passenger seat, operating the mirror direction switch (up/down and right/left) will transmit the operation signal to the passenger seat power window switch (ADM) via CAN communication. The ADM will activate the passenger mirror actuator in the selected direction.
