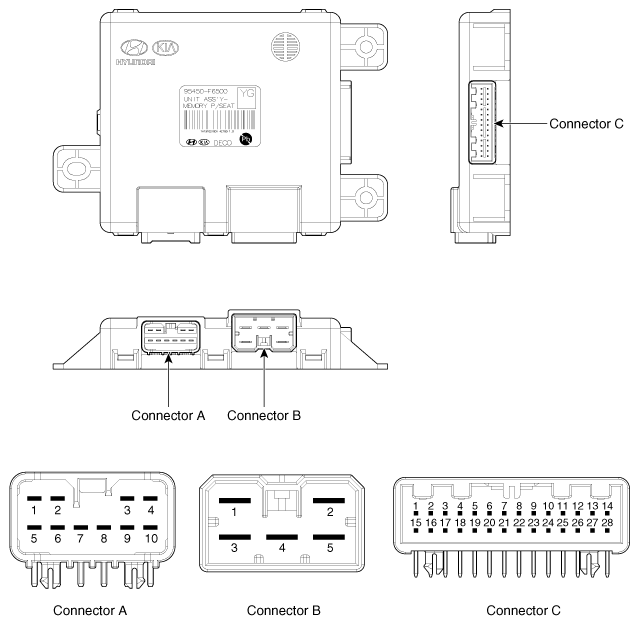

Components And Components Location: Components
Connector Pin Information
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | Battery (+) | Slide switch signal (Forward) |
| 2 | Reclining motor (Forward) | Ground | Reclining switch signal (Forward) |
| 3 | Rear height motor (Up) | Battery (+) | Front tilt switch signal (Up) |
| 4 | Slide motor (Forward) | - | Rear height switch signal (Up) |
| 5 | - | Ground | - |
| 6 | Reclining motor (Backward) | Body CAN (High) | |
| 7 | Front tilt motor (Up) | Body CAN (Low) | |
| 8 | Front tilt motor (Down) | - | |
| 9 | Rear height motor (Down) | - | |
| 10 | Slide motor (Backward) | Slide sensor | |
| 11 | Front tilt sensor | ||
| 12 | - | ||
| 13 | seat position sensor power | ||
| 14 | IGN1 | ||
| 15 | Slide switch signal (Backward) | ||
| 16 | Reclining switch signal (Backward) | ||
| 17 | Front tilt switch signal (Down) | ||
| 18 | Rear height switch signal (Down) | ||
| 19 | - | ||
| 20 | Ground | ||
| 21 | - | ||
| 22 | - | ||
| 23 | - | ||
| 24 | Reclining sensor | ||
| 25 | Seat rear height sensor | ||
| 26 | - | ||
| 27 | - | ||
| 28 | Battery (+) |
