Decision On The Operation Priority

  1. The motor operation shall be delayed for 100±10 milliseconds to prevent the overlapping of inrush circuit during motor start. In this case, the priority is as follows.

    Slide > Back Rest adjustment > Front height adjustment > Rear height adjustment

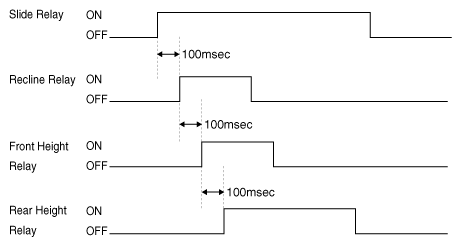

    Operation time chart

    Fig 1: Integrated Memory System Operation Timing Chart Pattern (Operation Priority)
    G12298527Courtesy of KIA MOTORS AMERICA, INC.
