Conditions For Prohibiting Recall Operation

Recall operation is prohibited and recall operation is stopped if any of the following conditions is met.

1. IGN2 OFF (except within 30 seconds of opening or closing door)
2. Over 3 km/h of vehicle speed
3. In case of manual switch manipulation
4. Operation time chart

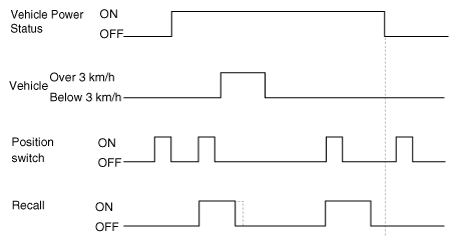

   Fig 1: Integrated Memory System Operation Timing Chart Pattern (Prohibiting Recall)

   Courtesy of KIA MOTORS AMERICA, INC.
