Components And Components Location: Components: [Radio/Cd/Mp3]

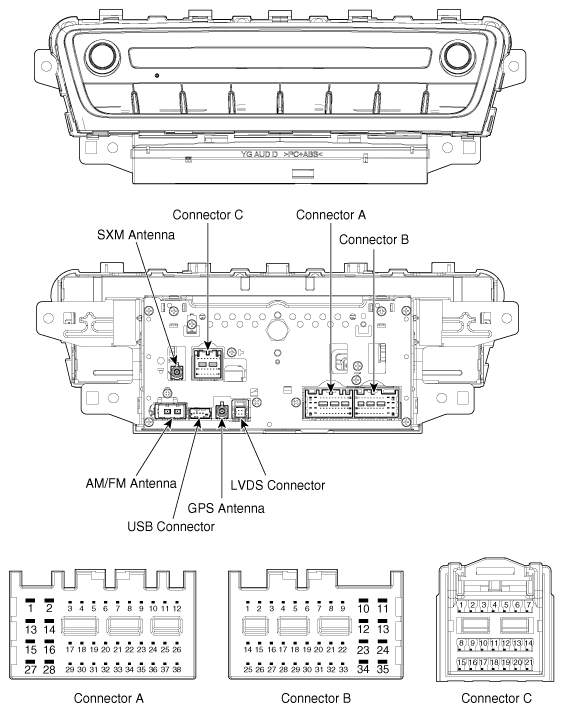

Fig 1: Audio Unit Components Location (RADIO/CD/MP3) With Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

Connector Pin Information

No.	Connector A	Connector B	Connector C
1	Rear left speaker (+)	-	Body-CAN (High)
2	Rear left speaker (-)	MIC (+)	Power train-CAN (High)
3	-	-	-
4	-	-	-
5	-	Antenna remote	-
6	Back view camera: Camera power SVM:-	Illumination (+)	-
7	Back view camera: VIN SVM: Camera VIN (Y)	Multimedia-CAN (High)	-
8	Back view camera:- SVM: Camera VIN (C)	-	Body-CAN (Low)
9	-	-	Power train-CAN (Low)
10	AUX_Right input	Battery (+)	-
11	AUX_Detect	Battery (+)	-
12	Steering wheel remote controller	Ground	-
13	Front left speaker (+)	Ground	-
14	Front left speaker (-)	MIC Ground	-
15	Front right speaker (-)	MIC (-)	-
16	Front right speaker (+)	Back view camera:- SVM: Ground	-
17	-	-	-
18	-	-	-
19	-	Illumination (-)	-
20	Back view camera: Ground SVM:-	Multimedia-CAN (Low)	-
21	Back view camera: VIN_Ground SVM: Camera VIN (Y)_Ground	LCD_3.3V	-
22	Back view camera:- SVM: Camera VIN (C)_Ground	ACC
23	-	LCD_Dimmer
24	AUX Left input	BL_ON/OFF
25	AUX Ground	-
26	Steering wheel remote controller (Ground)	-
27	Rear right speaker (-)	-
28	Rear right speaker (+)	-
29	-	-
30	-	-
31	-	-
32	Back view camera:- SVM: Ground	-
33	Back view camera: Camera VIN Shield SVM: Camera VIN (Y)_Shield	IGN1
34	Back view camera:- SVM: Camera VIN (C)_Shield	5V
35	-	LCD_DRV
36	-
37	-
38	Vehicle speed

AM/FM Antenna	No.	Description	No.	Description
	1	GND	3	GND
	2	FM1/AM	4	FM2

USB Connector	No.	Description	No.	Description
	1	USB VCC	3	USB D (+)
	2	USB D (-)	4	USB GND

GPS Antenna	No.	Description	No.	Description
	1	Signal	2	GND

SXM Antenna	No.	Description	No.	Description
	1	Signal	2	GND

LVDS Corrector	No.	Description	No.	Description
	1	LVDS (-)	3	Touch_Intermittent
	2	Touch_Power	4	LVDS (+)
