Components And Components Location: Components: Notes

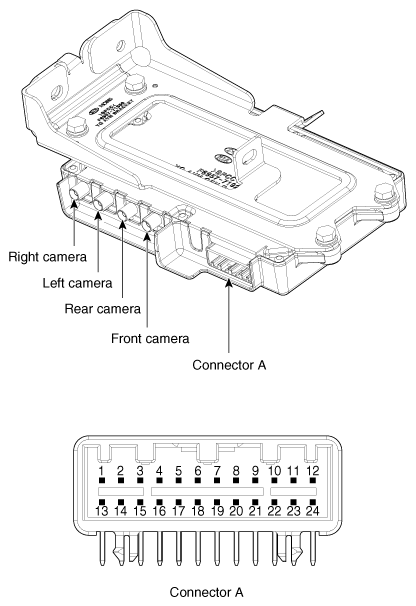

CONNECTOR PIN INFORMATION
| No. | Description |
|---|---|
| 1 | ACC |
| 2 | LED Indicator |
| 3 | Ground |
| 4 | Video output (Y-Shield) |
| 5 | - |
| 6 | C-CAN (Low) |
| 7 | Video output (Y-GND) |
| 8 | Video output (Y) |
| 9 | Front camera (Power) |
| 10 | Rear camera (Power) |
| 11 | Left camera (Power) |
| 12 | Right camera (Power) |
| 13 | IGN 2 Power |
| 14 | Switch input |
| 15 | - |
| 16 | Video output (C-Shield) |
| 17 | - |
| 18 | C-CAN (High) |
| 19 | Video output (C-GND) |
| 20 | Video output (C) |
| 21 | Front camera (Ground) |
| 22 | Rear camera (Ground) |
| 23 | Left camera (Ground) |
| 24 | Right camera (Ground) |
