Components And Components Location: Components: Notes

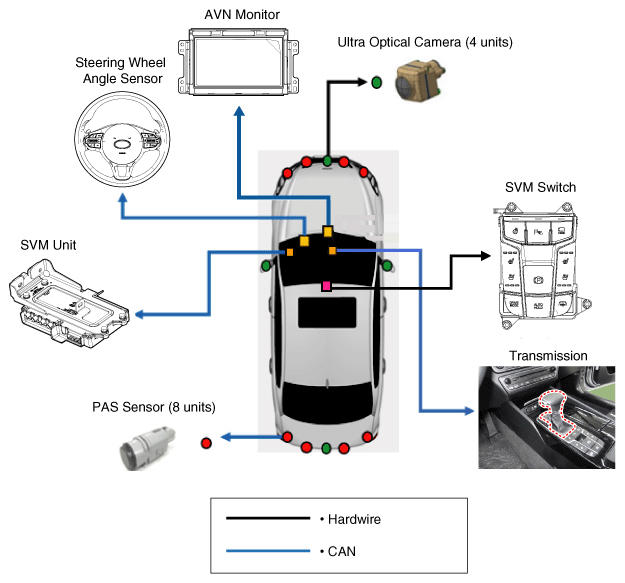

Fig 1: Surround View Monitoring (SVM) System Components Location

Courtesy of KIA MOTORS AMERICA, INC.

information

1. SVM unit basically transmits data via C-CAN only.
   • Steering wheel angle sensor: C-CAN
   • Vehicle speed sensor: C-CAN
2. It functions as a gateway of C-CAN ↔ MM-CAN in cluster.

   e.g. The signal of unit using MM-CAN is transmitted after converting to C-CAN in cluster.

   • User menu option: Cluster (AVN monitor, MM-CAN)
   • Transmission: TCU
   • PAS sensor: BCM
