Monitor KDS/GDS Data

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF"
  4. Operate SVMS switch.
  5. Monitor each "Camera Status" parameters in "Current Data" With KDS/GDS.

    Specification:  Camera Status - "ON"

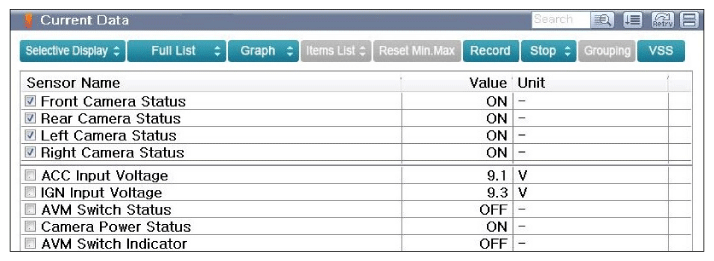

    Fig 1: Screen Display - Each Camera Status Current Data During SVMS ON
    G12281201Courtesy of KIA MOTORS AMERICA, INC.
  6. Is the parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
