Monitor KDS/GDS Data

  1. Ignition "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Monitor parameters in "Current Data" with KDS/GDS.

    Specification  : Refer to Fig 1

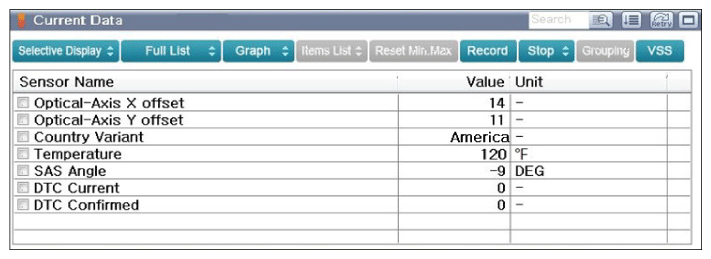

    Fig 1: Screen Display - Normal Current Data
    G12280728Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

    NO
