Monitor KDS/GDS Data

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Monitor "Hand Position Driving", "Country Code" and "Vehicle transmission type" in "Current Data" with KDS/GDS.

    Specification  : Refer to Fig 1 below

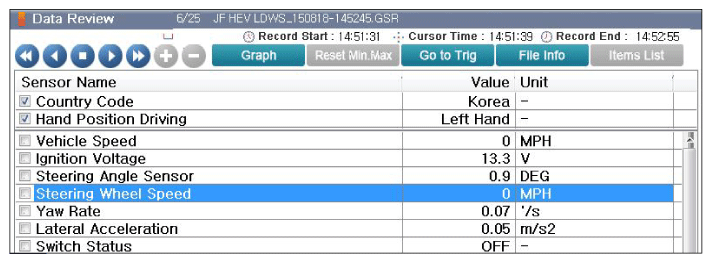

    Fig 1: Scantool Display - LKAS Variant Coding Related Current Data
    G12280573Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
