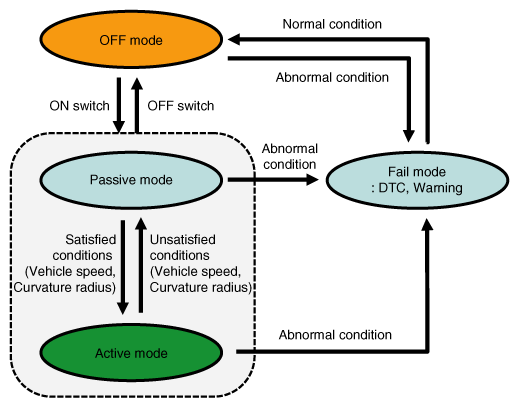

System Operating Mode
- If engine is started with BSD switched "OFF", the "OFF" mode will be activated.
- If BSD is switched "ON" from "OFF", the Passive mode will be activated.
- If engine is started with BSD switched "ON", the Passive mode will be activated.
* With ignition "ON", the switch is in the initial state: The last position will be kept.
- If IGN OFF→ ON with BSD switched "ON", BSD will be activated.
- If IGN OFF→ ON with BSD switched "OFF", BSD will be deactivated.
- If the engine is started with BSD switched "ON", or if BSD is switched "ON" from "OFF", the warning lamp on the door mirror will flicker for 2 to 3 seconds.
This is to inform the driver that the BSD system is ready (provided that if the system is in Fail mode, there is no flickering).
- If the activation conditions (speed and curvature radius) are met while driving, Active mode will be activated (warning issued).
- If the activation conditions (speed and curvature radius) are not met while driving, Passive mode will be activated (warning removed).
- If BSD & LCA operation fails in any mode, Fail mode will be activated.
- If BSD & LCA operation operates normally in Fail mode, OFF mode will be activated.
- If BSD is switched "OFF" while BSD & LCA functions are in operation (Active/Passive), the OFF mode will be activated.
