Home >> Kia >> 2017 >> Cadenza Technology >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Blind Spot Detection System >> Blind Spot Detection Unit >> Components And Components Location >> Components

Components And Components Location: Components

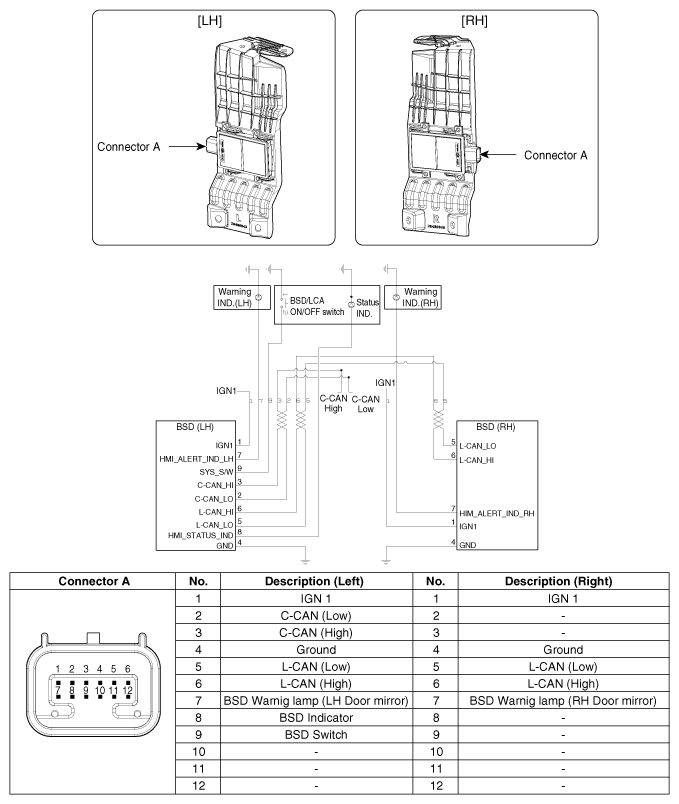

Fig 1: Blind Spot Detection Unit Circuit Diagram And Connector End View
G12298327Courtesy of KIA MOTORS AMERICA, INC.
