Components And Components Location: Components

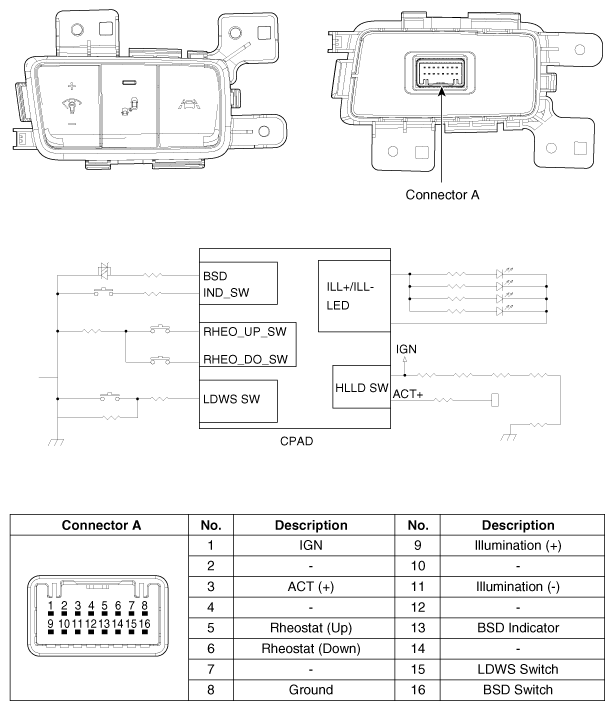

Fig 1: Blind Spot Detection Switch Circuit Diagram And Connector End View

G12298335

Courtesy of KIA MOTORS AMERICA, INC.
