Variant Coding

  1. Ignition "ON"
  2. Perform "Vehicle S/W Management" with KDS/GDS.
  3. Select the "Variant Coding" and set the proper option.
  4. Check for DTCs in the system.

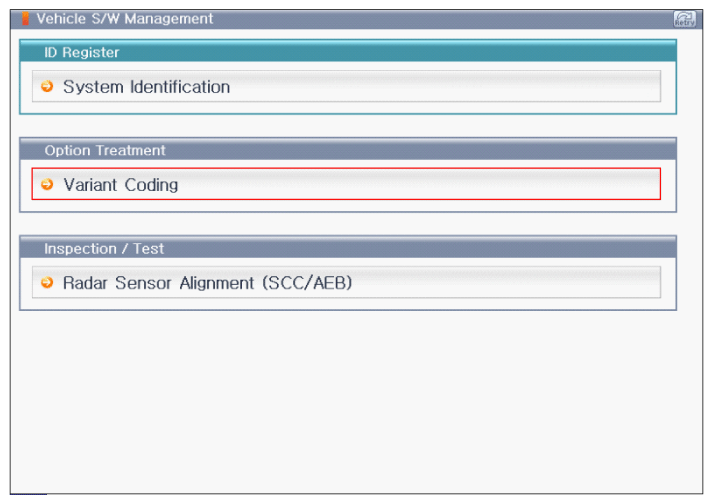

Fig 1: Screen Display - Variant Coding Procedure On Vehicle S/W Management (1 Of 5)
G12287540Courtesy of KIA MOTORS AMERICA, INC.

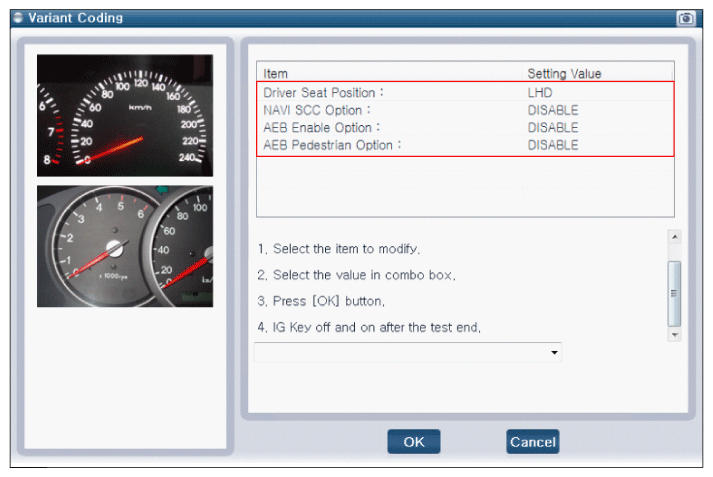

Fig 2: Screen Display - Variant Coding Procedure On Vehicle S/W Management (2 Of 5)
G12287541Courtesy of KIA MOTORS AMERICA, INC.

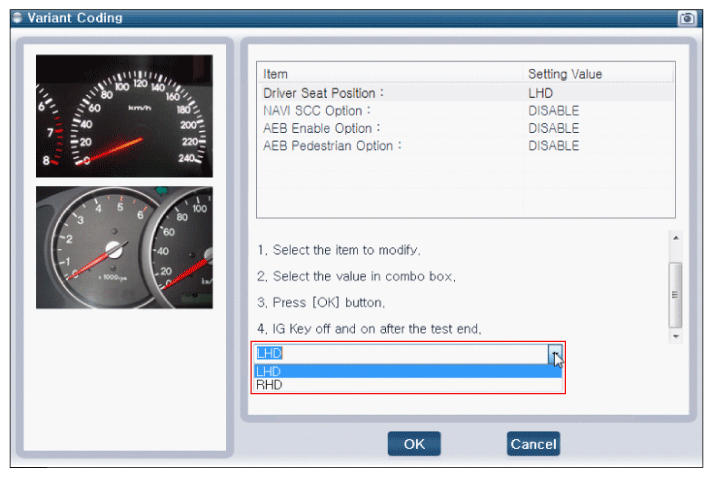

Fig 3: Screen Display - Variant Coding Procedure On Vehicle S/W Management (3 Of 5)
G12287542Courtesy of KIA MOTORS AMERICA, INC.

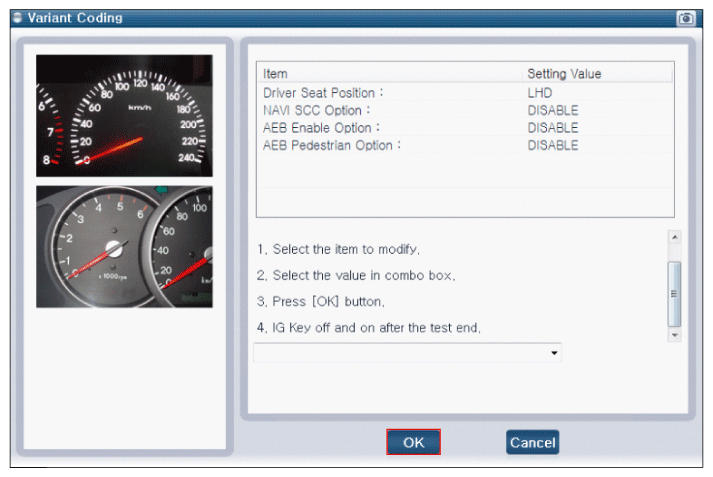

Fig 4: Screen Display - Variant Coding Procedure On Vehicle S/W Management (4 Of 5)
G12287543Courtesy of KIA MOTORS AMERICA, INC.

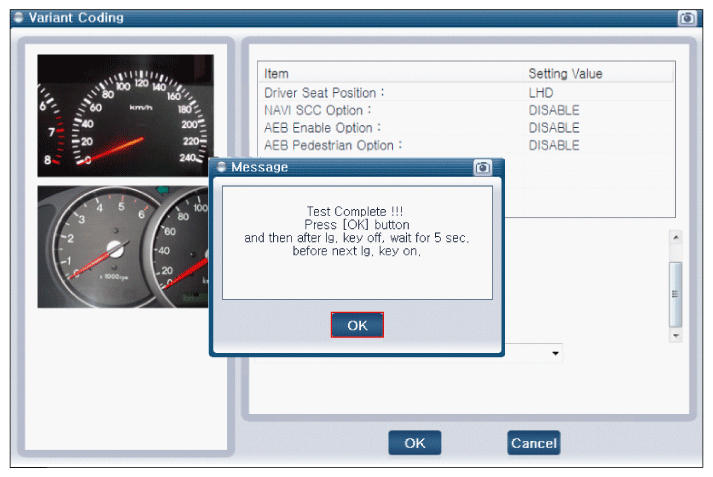

Fig 5: Screen Display - Variant Coding Procedure On Vehicle S/W Management (5 Of 5)
G12287544Courtesy of KIA MOTORS AMERICA, INC.
