Circuit Diagram: Notes

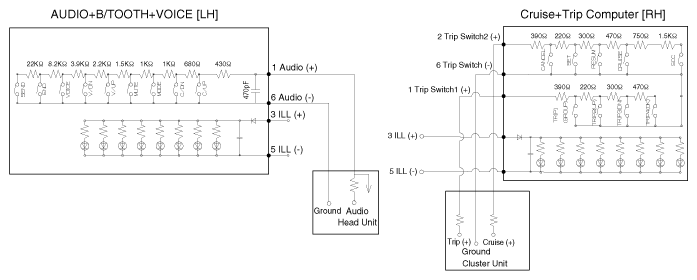

Fig 1: Advanced Smart Cruise Control (ASCC) Switch Circuit Diagram
G12290530Courtesy of KIA MOTORS AMERICA, INC.
