Signal Waveform & Data

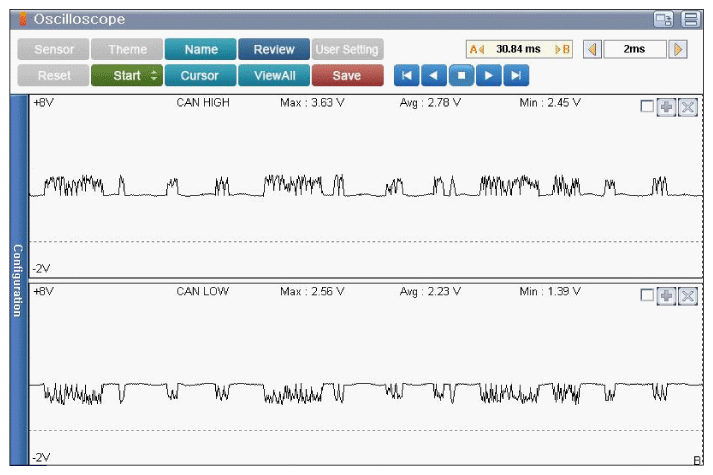

Fig 1: Screen Display - C_CAN Low & High Signal Waveform
G12289267Courtesy of KIA MOTORS AMERICA, INC.

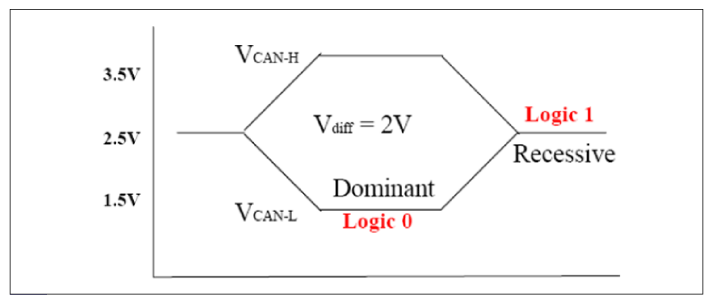

Fig 2: Screen Display - C_CAN Bus Voltage Level (High Speed CAN)
G12289268Courtesy of KIA MOTORS AMERICA, INC.
