DTC B1002-55: EPB Present Error - Coding Code Error
>>
Components Location
Components Location

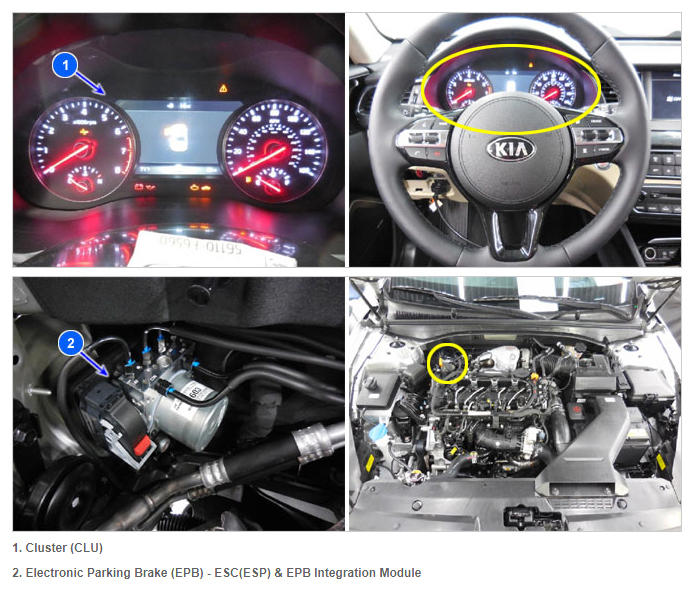

Fig 1: Cluster (CLU) & Electronic Parking Brake (EPB) - ESC (ESP) & EPB Integration Module Components Location
Courtesy of KIA MOTORS AMERICA, INC.
