Cluster Module Variant Coding

Verify vehicle options and have VIN code in hand.
Perform "CLU VARIANT CODING " in the "Vehicle S/W Management" with KDS/GDS.
Check for DTCs in the system.

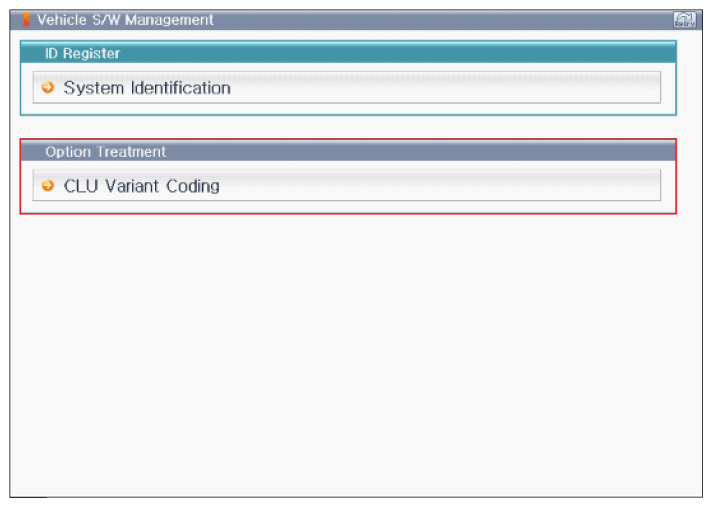

Fig 1: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

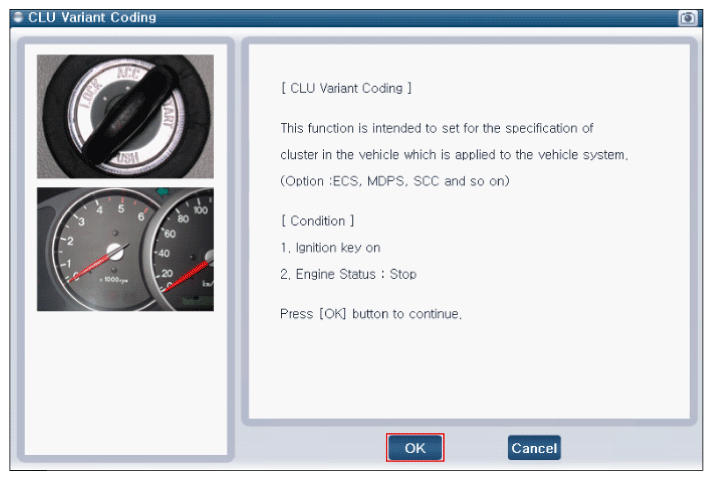

Fig 2: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

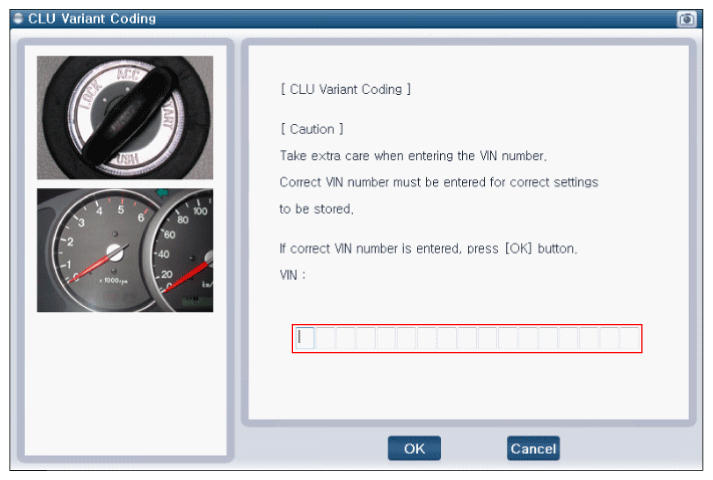

Fig 3: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

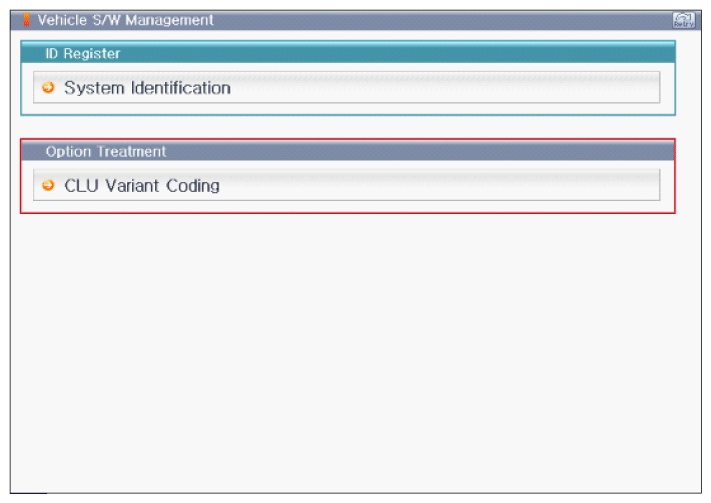

Fig 4: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line; 1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

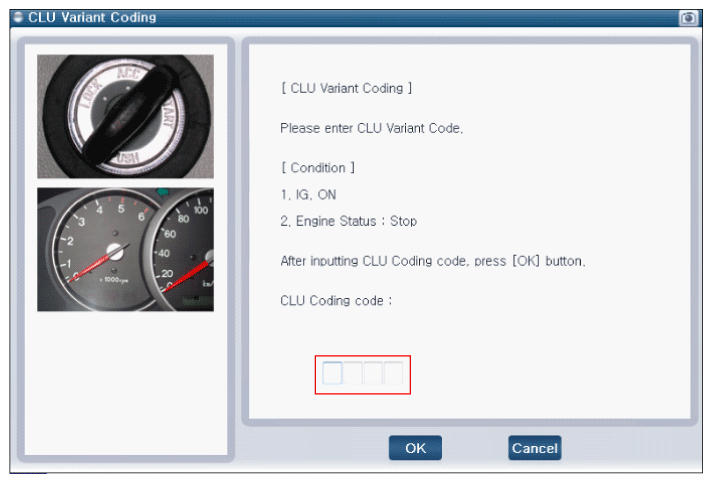

Fig 5: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line; 2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Is the DTCs stored in the system as a present?
YES
- Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with KDS/GDS again, and then, go to "Verification Of REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
