Terminal And Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

   Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

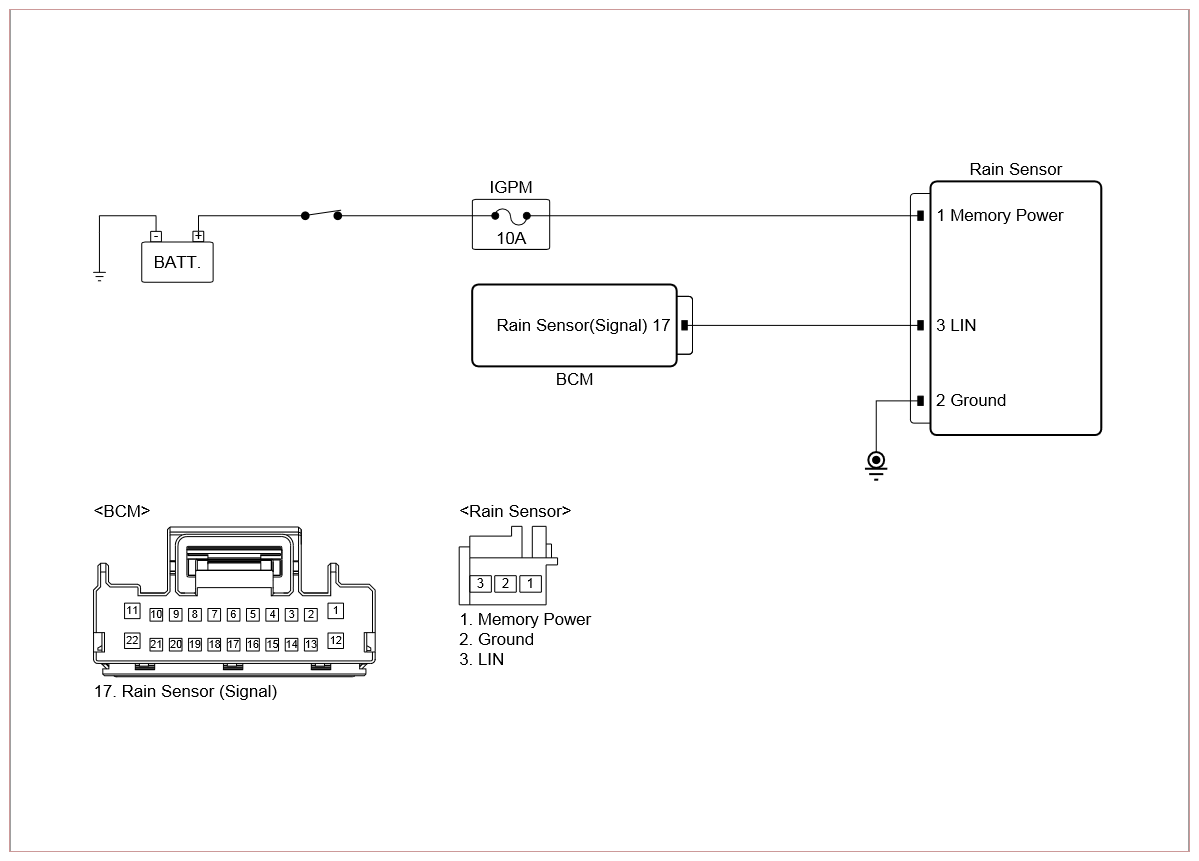

Fig 1: IGPM & Rain Sensor Circuit Diagram With Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

YES

• Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.

NO

• Go to "POWER CIRCUIT INSPECTION " procedure.
