Trunk Open Switch

  1. Check for continuity between the trunk switch connector.

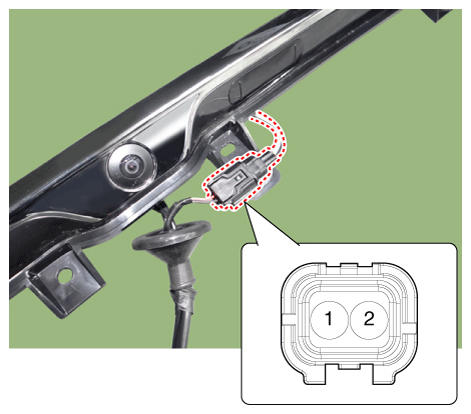

    Fig 1: Trunk Open Switch With Connector End View
    G12298949Courtesy of KIA MOTORS AMERICA, INC.
  2. If continuity is not as specified, inspect the switch.
    Fig 2: Trunk Open Switch Connector Terminals Continuity Chart
    G12298950Courtesy of KIA MOTORS AMERICA, INC.
