Repair Procedures: Removal

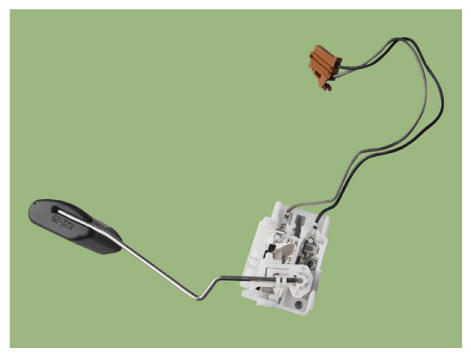

Fig 1: Identifying Fuel Sender
G12293625Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the fuel sender connector (A).

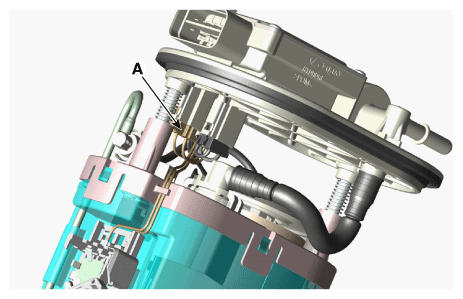

    Fig 2: Locating Fuel Sender Connector
    G12293626Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender (A) after releasing the fix hook.

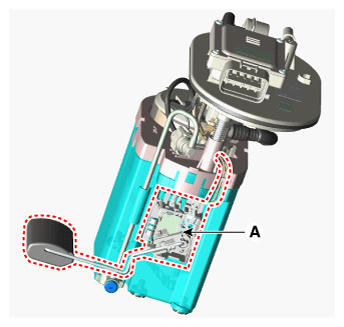

    Fig 3: Locating Fuel Sender
    G12293627Courtesy of KIA MOTORS AMERICA, INC.
