Component Inspection

■ SMK, EPCU Neutral Mode

1. Ignition "ON" (Power Button LED "Red")
2. Perform "Neutralize Mode" in the "Vehicle S/W Management" with GDS.
3. Neutralize smart key unit with GDS. (Fig 1, Fig 2, Fig 3)
4. Neutralize EPCU with GDS. (Fig 1, Fig 4, Fig 5)
5. Perform key teaching procedure for smart key unit with GDS. (Fig 6, Fig 7, Fig 8, Fig 9, Fig 10, Fig 11)
   CAUTION: Pin code must be prepared to Neutralize Smart Key unit and to perform key teaching procedure.

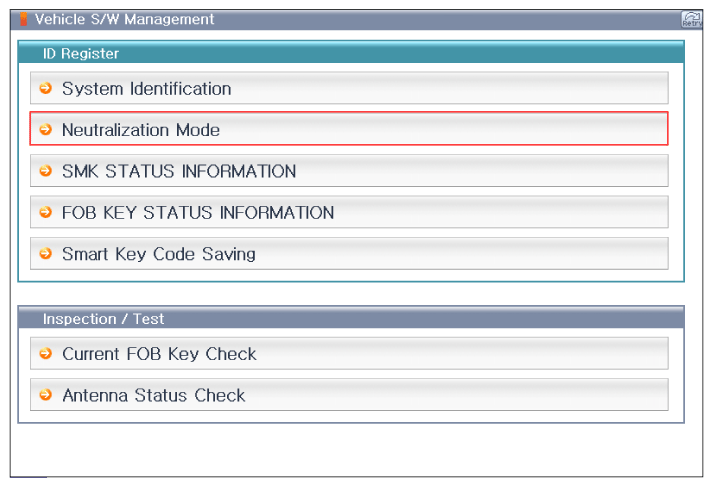

   Fig 1: Scantool Display - Neutralize Mode In Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.

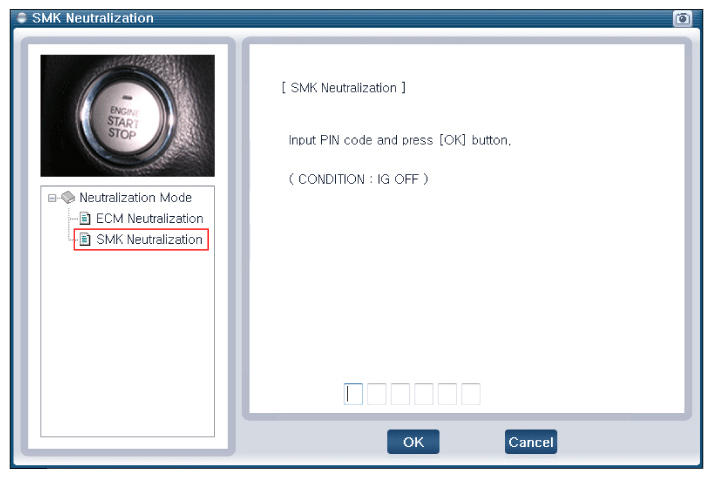

   Fig 2: Scantool Display - SMK Neutralization

   Courtesy of KIA MOTORS AMERICA, INC.

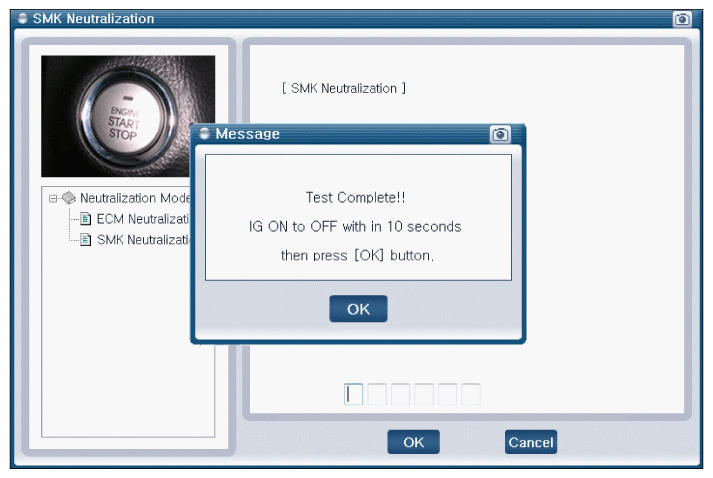

   Fig 3: Scantool Display - SMK Neutralization (Test Complete)

   Courtesy of KIA MOTORS AMERICA, INC.

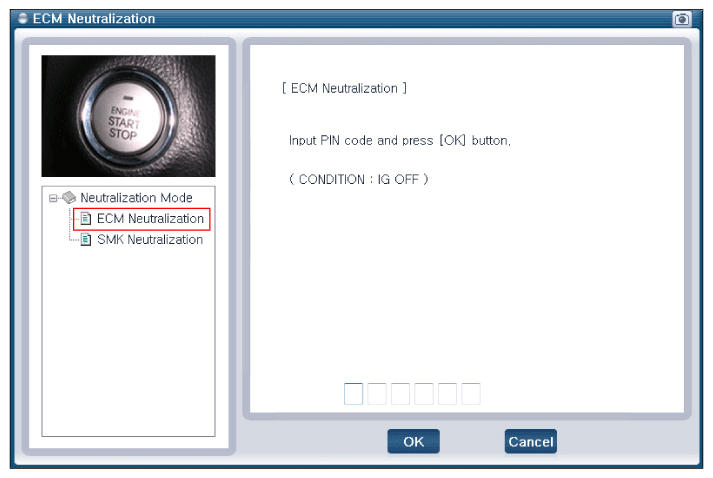

   Fig 4: Scantool Display - ECM Neutralization

   Courtesy of KIA MOTORS AMERICA, INC.

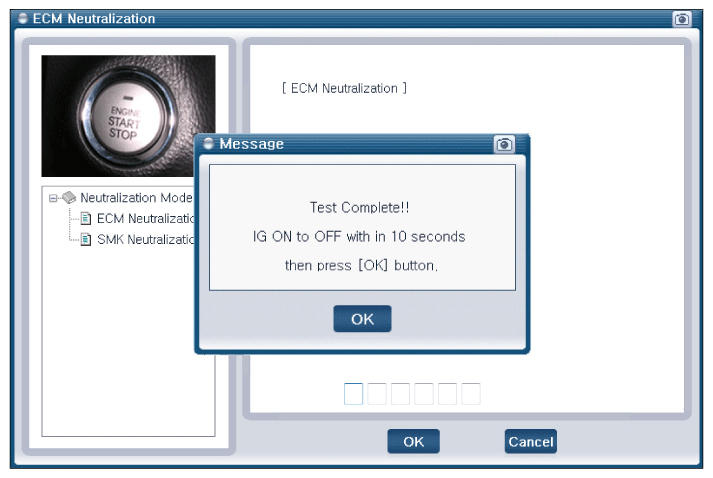

   Fig 5: Scantool Display - ECM Neutralization (Test Complete)

   Courtesy of KIA MOTORS AMERICA, INC.

   ■ Smart Key unit Learning

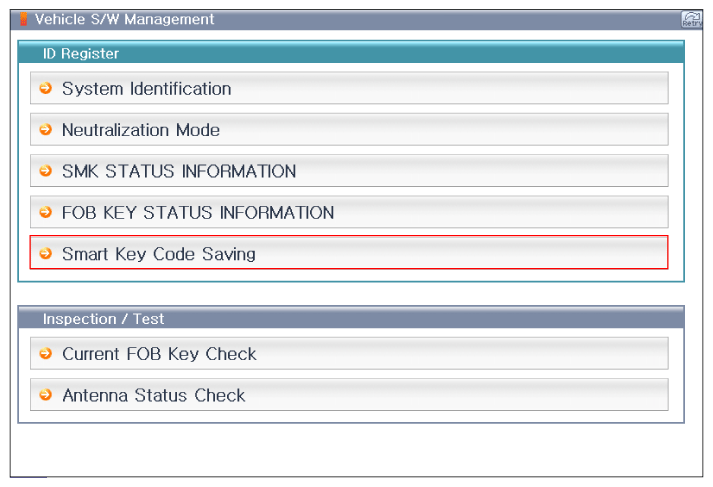

   Fig 6: Scantool Display - Smart Key Unit Learning In Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.

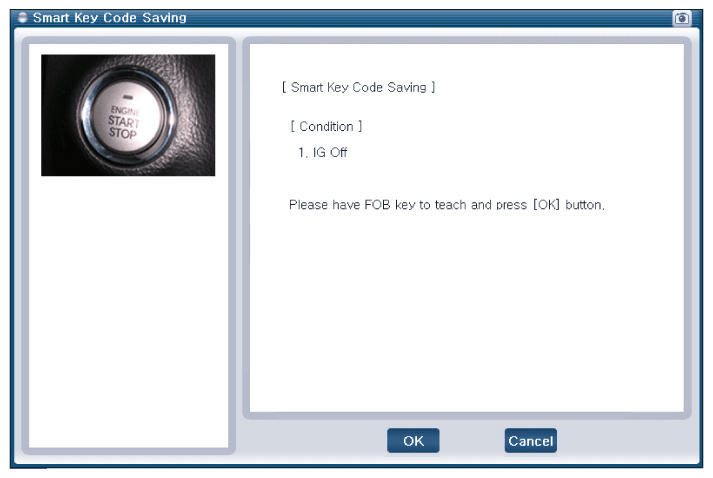

   Fig 7: Scantool Display - Smart Key Code Saving

   Courtesy of KIA MOTORS AMERICA, INC.

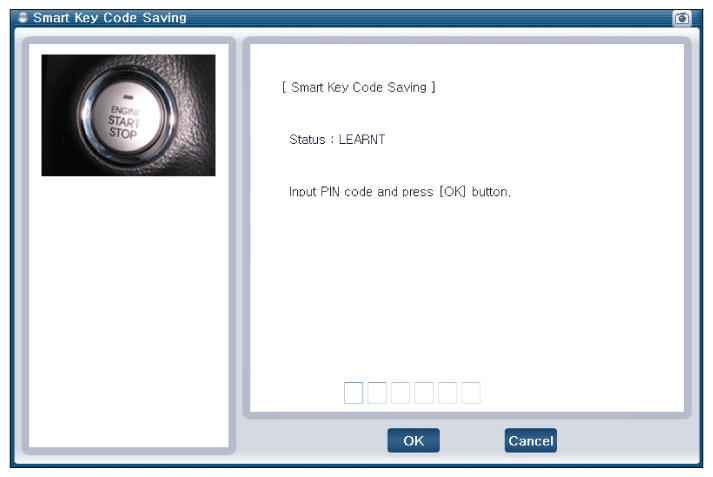

   Fig 8: Scantool Display - Smart Key Code Saving (Input Pin Code)

   Courtesy of KIA MOTORS AMERICA, INC.

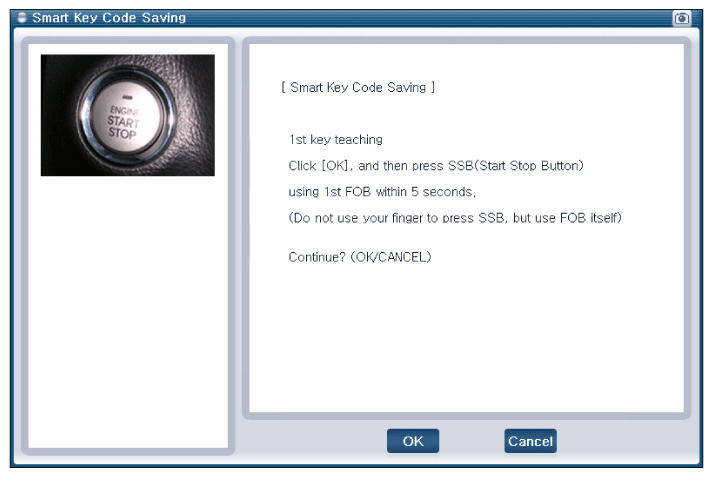

   Fig 9: Scantool Display - Smart Key Code Saving (1st Key Teaching)

   Courtesy of KIA MOTORS AMERICA, INC.

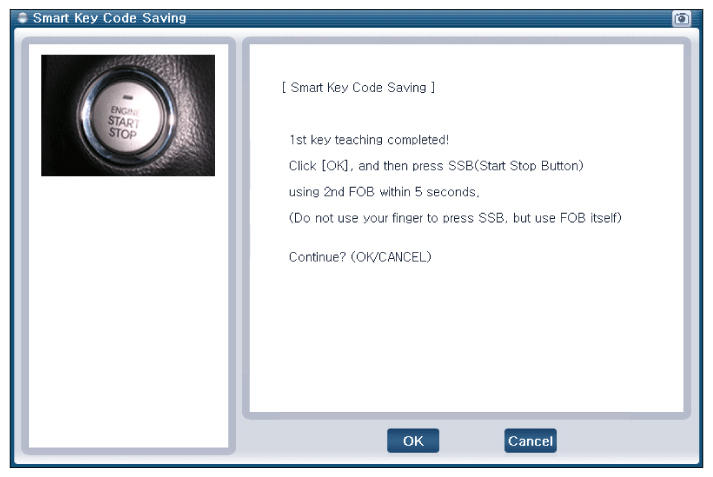

   Fig 10: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
   CAUTION: Register Smart Key according to the guide.

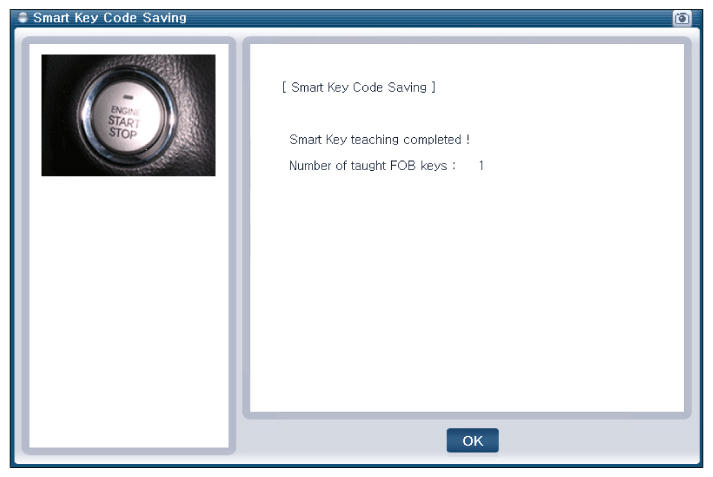

   Fig 11: Scantool Display - Smart Key Teaching Completed

   Courtesy of KIA MOTORS AMERICA, INC.
6. Is the neutralization of Smart Key unit, EPCU and key teaching normal?

   YES

   • Fault is intermittent caused by poor contact in Smart key unit and/or EPCU's connector or was repaired and Smart key unit memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace Smart key unit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   NOTE: ■ PIN code is programmed in Smart key unit, EPCU.

   1. If the Smart key unit is not registered with PIN, key teaching process is not proceeded
   2. Registering PIN is available after Smart Key unit is neutralized.
   3. Neutralization of EPCU is available with GDS (Registering PIN code)
   4. If the virgin EPCU is installed on vehicle, EPCU is automatically programmed PIN code by Smart Key unit
   5. Registering PIN code is only possible for virgin or neutralized status.


   ■ Smart Key EPCU Learning
   All Learning procedure is able to do with a GDS in the vehicle's ignition key off state.

   1. Correct PIN Code must be recorded and kept in hand prior to perform Smart Key Code Saving.
   2. In case of SMK Unit is replaced, Smart Key Code Saving must be performed.
   3. In case wrong PIN signal is inputted 3 times, Neutral Mode or Teaching is prohibited for 1 hour.
   4. In case battery is discharged during process of Neutral Mode or Teaching, timer will restart and wait for 1 hour to re-do.
