Components And Components Location: Components

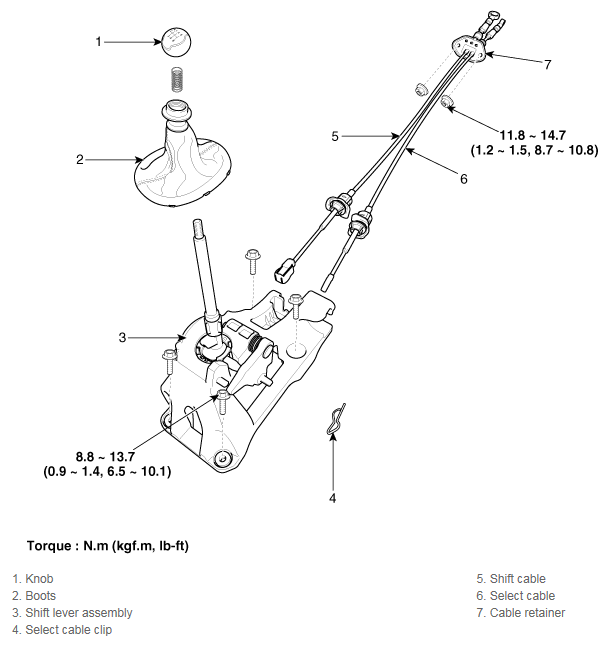

Fig 1: Shift Lever Exploded View With Torque Specifications

G11950294

Courtesy of KIA MOTORS AMERICA, INC.
