Component Inspection

■ Check CVVT Intake Assembly

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON"
3. Perform "Actuation Test"  for CVVT Intake

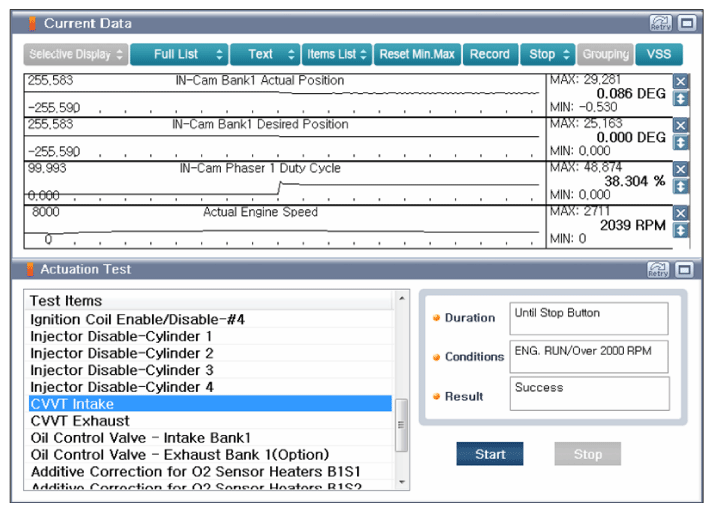

   Fig 1: Screen Display - CVVT Intake Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.
4. Does the CVVT operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace CVVT and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
