R-2: Check The Power Connection Of AVN H/U

  1. Remove the AVN H/U.
  2. Check the specified condition of terminal.

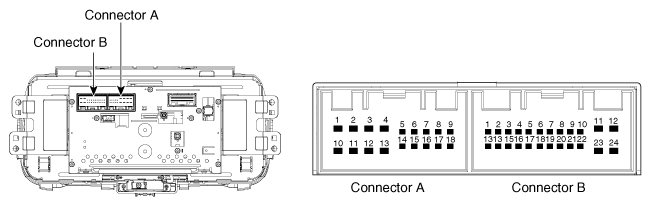

    Fig 1: AVN H/U Connector
    G11952016Courtesy of KIA MOTORS AMERICA, INC.
    OK
    Tester Connection Condition Specified Condition
    CON-B11/B12 ↔ GND (B+) Always 9 ~ 16 V
    CON-B18 ↔ GND (ACC) Always 9 ~ 16 V
    CON-B23 ↔ GND Always Below 1Ω
    CON-B24 ↔ GND Always Below 1Ω
    NG
    • Check again after repairing or replacing the cable harness or connector.
