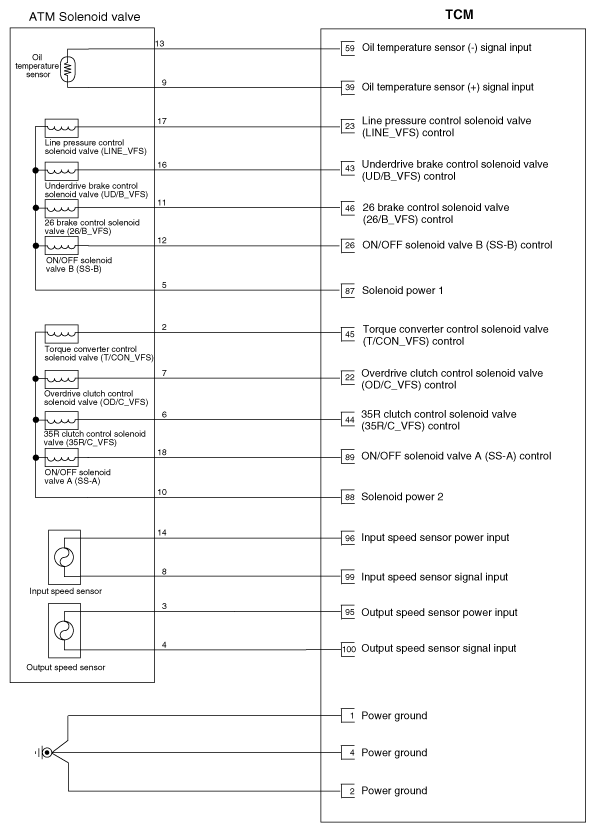

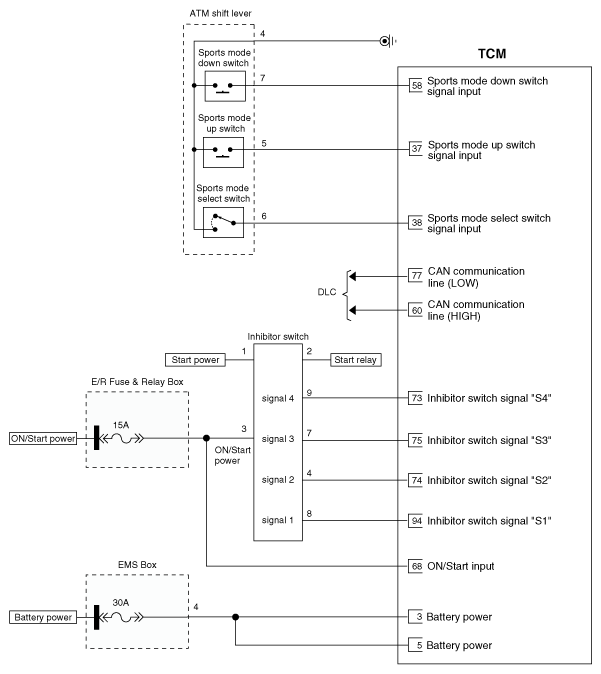

Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 1.6L >> Transaxle Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
