Circuit Diagram

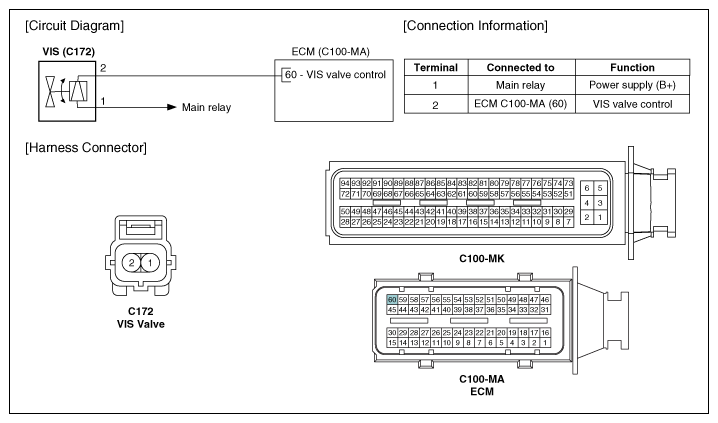

(M/T)

Fig 1: Variable Intake Solenoid Valve Connector (M/T)
G11950153Courtesy of KIA MOTORS AMERICA, INC.

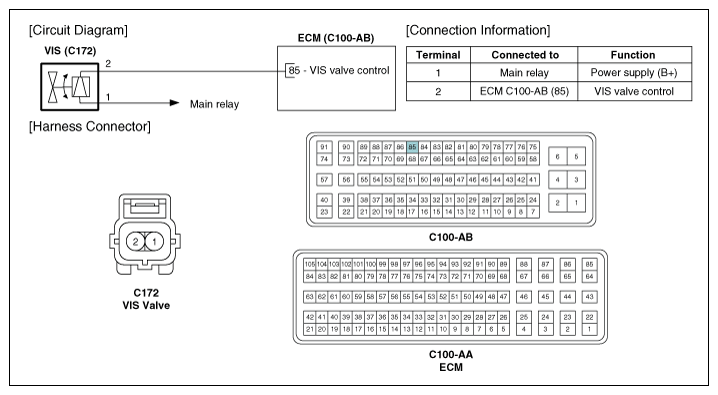

(A/T)

Fig 2: Variable Intake Solenoid Valve Connector (A/T)
G11950154Courtesy of KIA MOTORS AMERICA, INC.
