Circuit Diagram

(M/T)

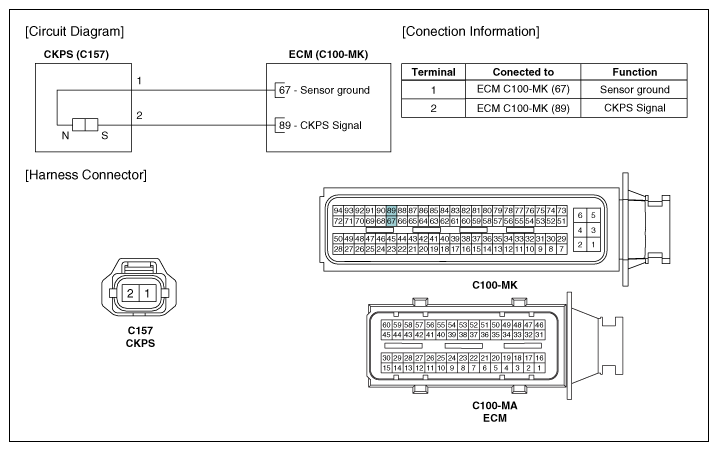

Fig 1: Crankshaft Position Sensor Connector (M/T)

G11950084

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

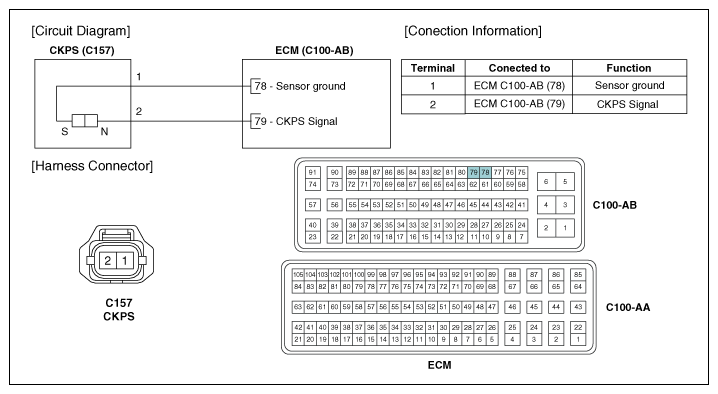

Fig 2: Crankshaft Position Sensor Connector (A/T)

G11950085

Courtesy of KIA MOTORS AMERICA, INC.
