Circuit Diagram

(M/T)

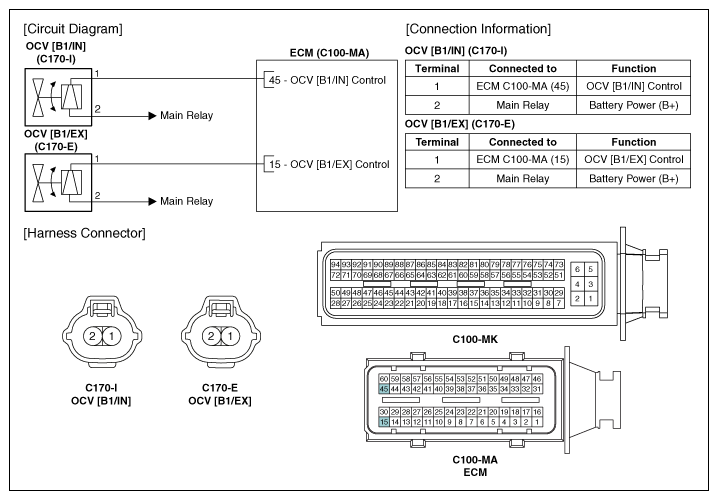

Fig 1: CVVT Oil Control Valve Connector (M/T)

G11950147

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

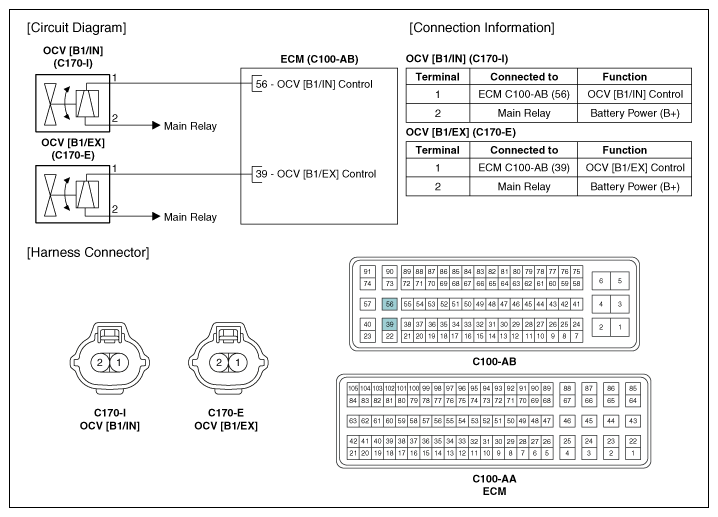

Fig 2: CVVT Oil Control Valve Connector (A/T)

G11950148

Courtesy of KIA MOTORS AMERICA, INC.
