Signal Waveform & Data

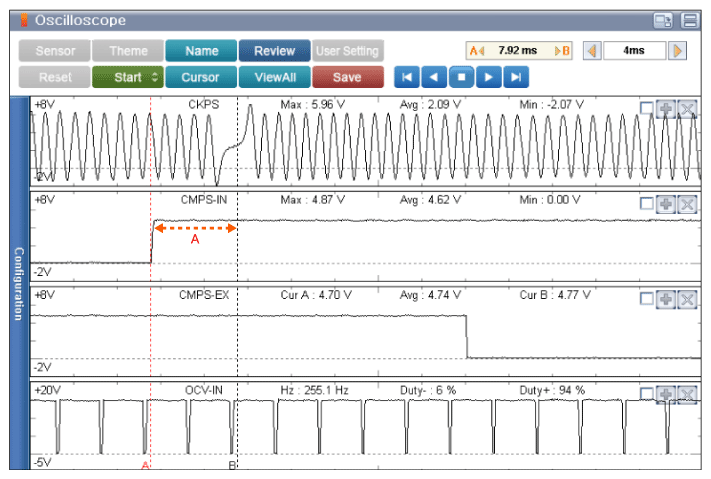

Fig 1: Scantool Display - Normal Waveforms Of OCV (Intake) & CKPS, CMPS (Intake & Exhaust) At Engine Idle
G11945807Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
