Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor fuel pump related parameter on the "Current Data  " with KDS/GDS.

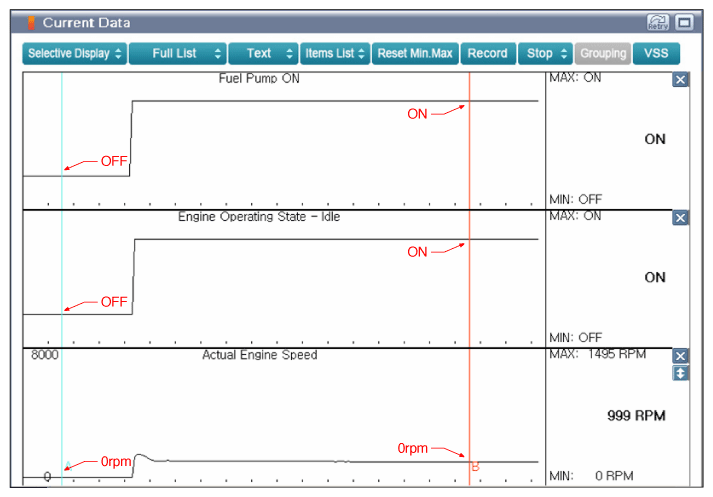

    Fig 1: Scantool Display - Current Data (Ignition ON, Engine OFF Then ON)
    G11945327Courtesy of KIA MOTORS AMERICA, INC.
    1. Fuel pump "Off"
    2. Fuel pump "On"
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
