Transmitter Code Registration (Using GDS)
- Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
 Courtesy of
|

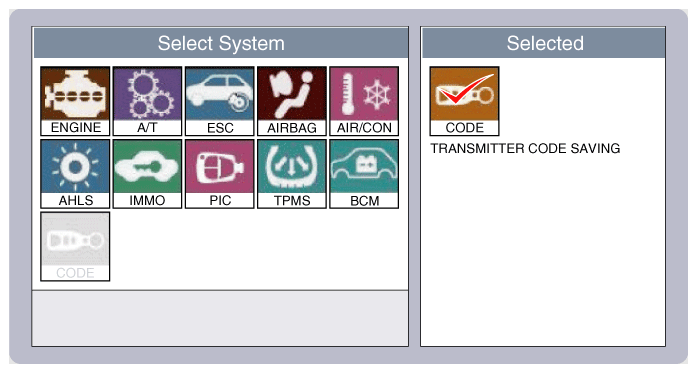

- Select the vehicle model and then do "CODE SAVING"
 Courtesy of
|

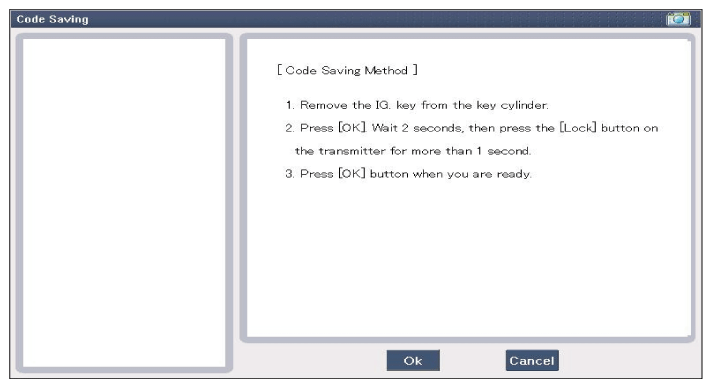

- After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.
 Courtesy of
|

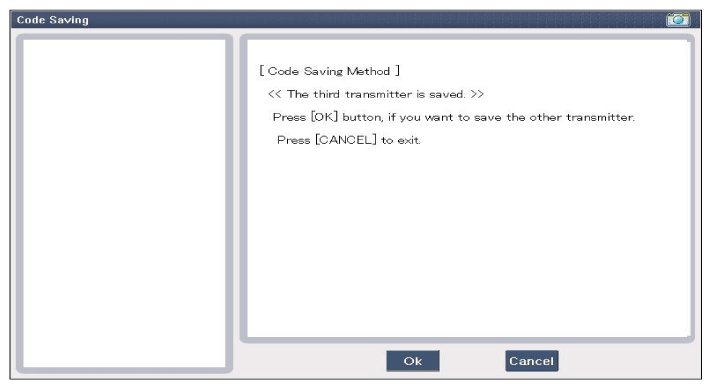

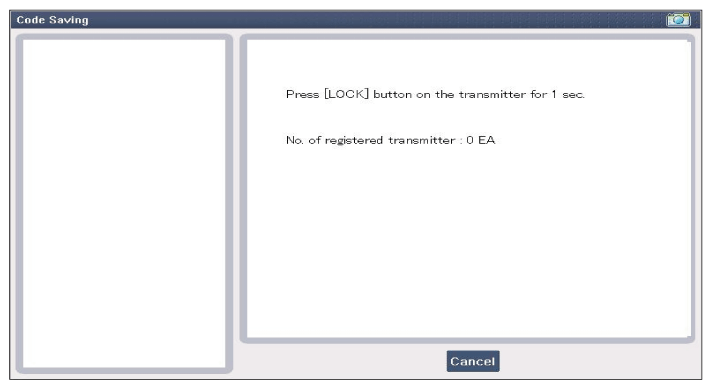

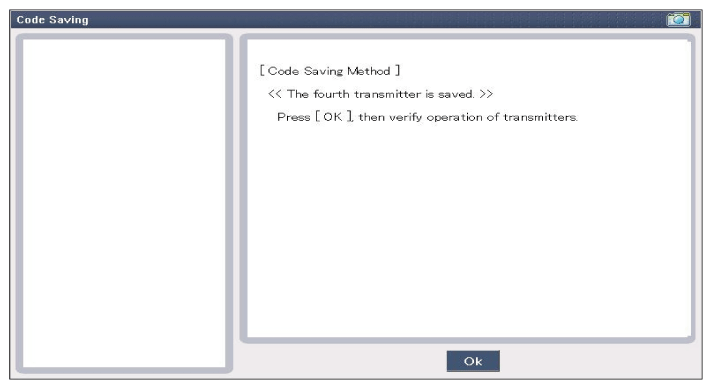

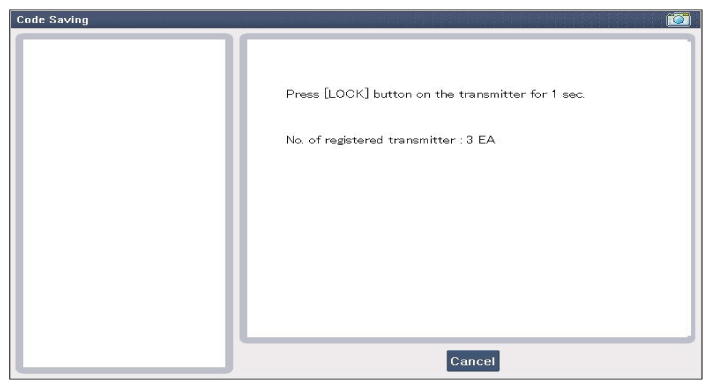

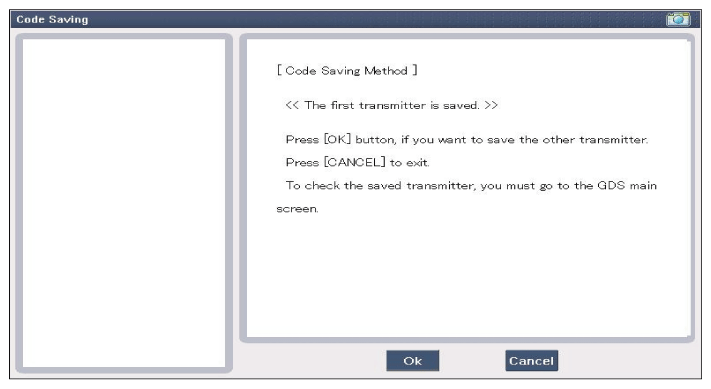

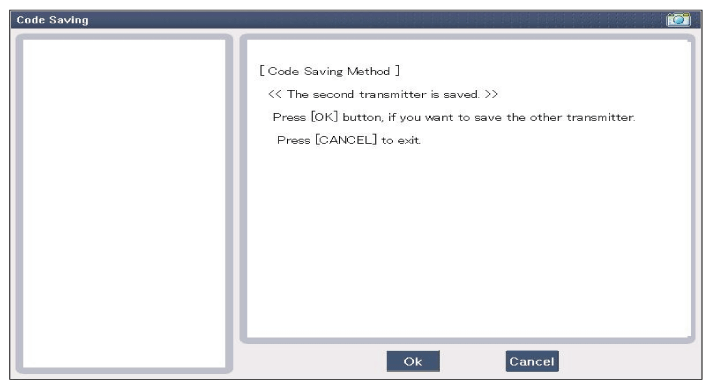

- After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
 Courtesy of
|
