Components And Components Location: Components

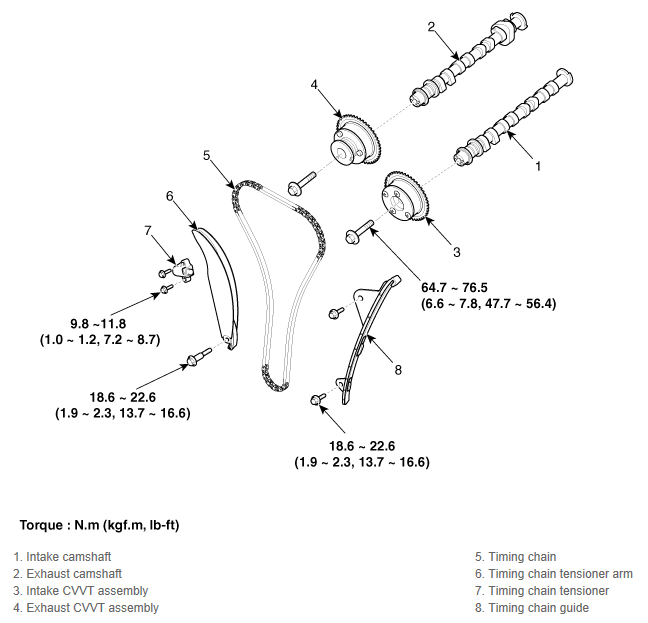

Fig 1: Timing Chain Exploded View With Torque Specifications

G11954698

Courtesy of KIA MOTORS AMERICA, INC.
