Components And Components Location: Components

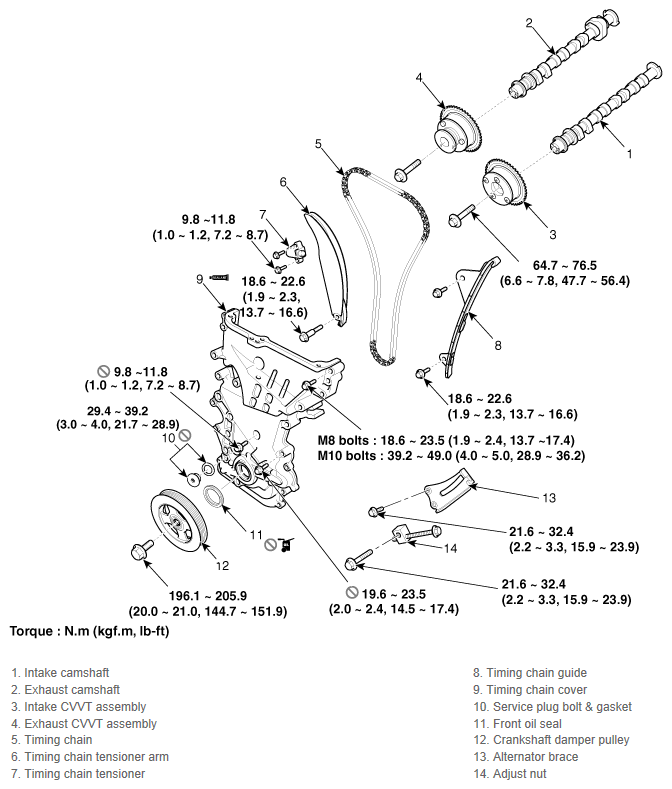

Fig 1: Timing System Exploded View With Torque Specifications

G11954665

Courtesy of KIA MOTORS AMERICA, INC.
