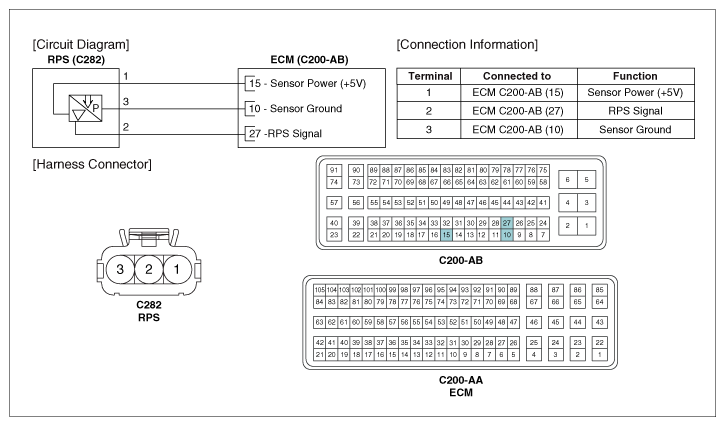

Home >> Kia >> 2016 >> Soul ! >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram >> (A/T)
