Circuit Diagram: (A/T)

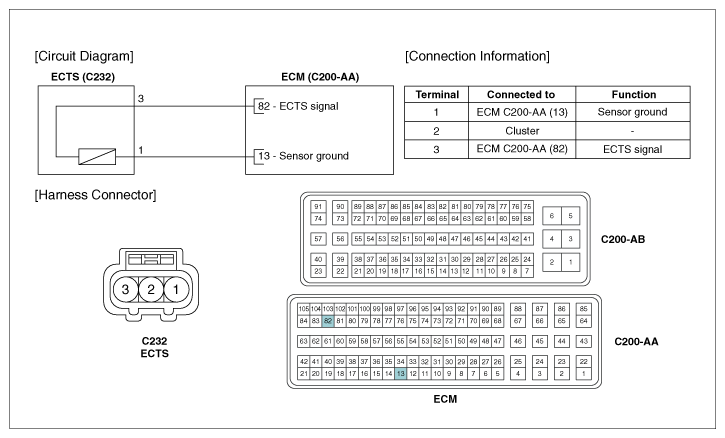

Fig 1: Engine Coolant Temperature Sensor Connector (A/T)

G11955504

Courtesy of KIA MOTORS AMERICA, INC.
